MC7805CDT - ON Semiconductor

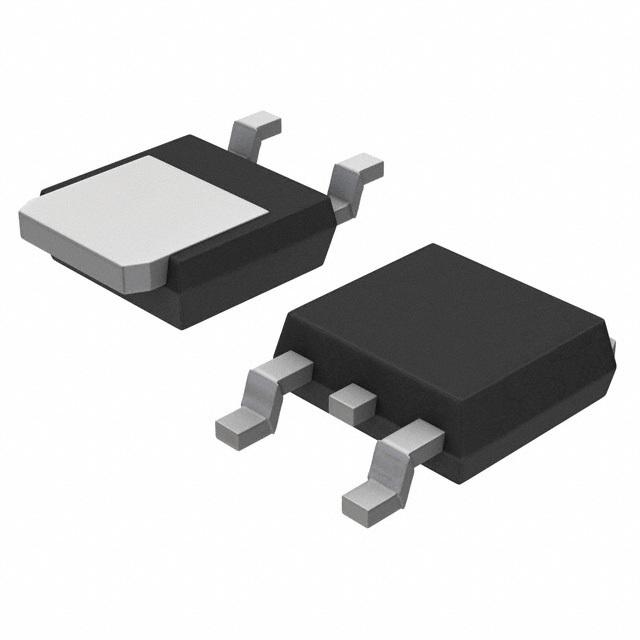

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MC7805CDT
Manufacturer

ON Semiconductor
ChipWorker Part#

CW161637007
Category

Voltage Regulator
Package

TO-252-3
Description

Standard Regulator Pos 5V 1A 3Pin(2+Tab) DPAK Rail
Documentation

Datasheet

MC7805CDT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MC7805CDT Specifications

Attribute	Attribute Value

Part Number	MC7805CDT
Manufacturer	ON Semiconductor
ChipWorker Part#	CW161637007
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Output Voltage	5 V
Output Current	1 A
Input Voltage	≤35 V
	expand all
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

Linear Voltage Regulator IC Positive Fixed 1 Output 1A DPAK
