HCNW2611 ,Optocoupler, Optoisolator - AVAGO Technologies

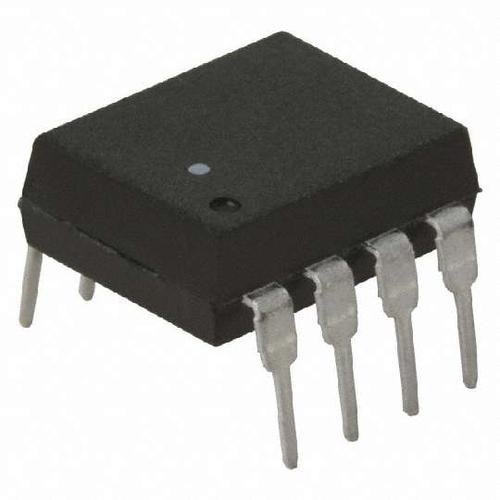

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

52 points

Part No

HCNW2611
Manufacturer

AVAGO Technologies
ChipWorker Part#

CW150119146
Category

Optocoupler, Optoisolator
Package

PDIP-8
Description

Optocoupler Logic-Out Open Collector DC-IN 1CH 8Pin PDIP W Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

329 pcs In Stock
Estimated Price

$ 3.29

Buy HCNW2611

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HCNW2611 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HCNW2611 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HCNW2611
Manufacturer	AVAGO Technologies
ChipWorker Part#	CW150119146
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Input Voltage (DC)	1.64 V
Number of Channels	1 Channel
Power Dissipation	85 mW
Data Rate	10.0 Mbps
Rise Time	24.0 ns
Isolation Voltage	3750 Vrms
Maximum Forward Voltage (Max)	1.85 V
Forward Current (Max)	20 mA
Fall Time	0.01 µs
Power Dissipation (Max)	85 mW
	expand all
Size-Width	9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Similar & Replacement Parts

Similar products

Product Description

Description
The 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are optically coupled gates that combine a GaAsP light emitting diode and an integrated high gain photo etector.
An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification
up to 15,000 V/µs at Vcm = 1000 V.
This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational param e ters are guaranteed from -40 °C to +85 °C allowing troublefree system performance.
