SM05T1G ,TVS Diode - ON Semiconductor

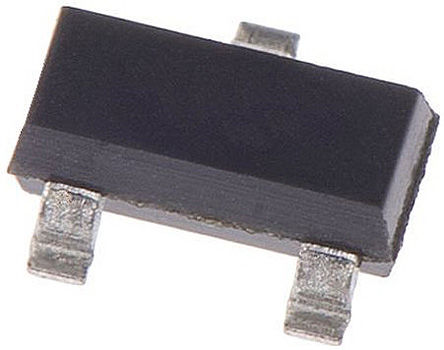

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

181 points

Part No

SM05T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW60744
Category

TVS Diode
Package

SOT-23-3
Description

ON SEMICONDUCTOR SM05T1G Zener Array Diode, Common Anode, 225mW, -55℃, 150℃, SOT-23
Documentation

Datasheet
Ships from

Moscow
Наличие

32298 pcs In Stock
Estimated Price

$ 0.03

Buy SM05T1G

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SM05T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SM05T1G Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SM05T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW60744
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	5.00 V
Operating Voltage	5.00 V
Capacitance	225 pF
Power Rating	300 W
Breakdown Voltage	6.2 V
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Power Dissipation	300 mW
Clamping Voltage	9.8 V
Test Current	1 mA
Max Breakdown Voltage	7.3 V
Peak Pulse Power	300 W
Min Breakdown Voltage	6.2 V
Reverse Breakdown Voltage	6.2 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	expand all
Size-Length	3.04 mm
Size-Width	1.40 mm
Size-Height	1.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The SM05T1G is a dual monolithic silicon transient voltage suppressor Zener Diode designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as printers, business machines and other applications. Their dual junction common cathode design protects two separate lines using only one package. This device is ideal for situations where board space is at a premium.
SOT-23 Package allows either two separate unidirectional or single bidirectional configurations
300W at 1.0ms Peak power (bidirectional)
Low leakage
UL94 V-0 Flammability rating
AEC-Q101 qualified and PPAP capable
Pb-free device
