MEA2010LC220T002 - TDK

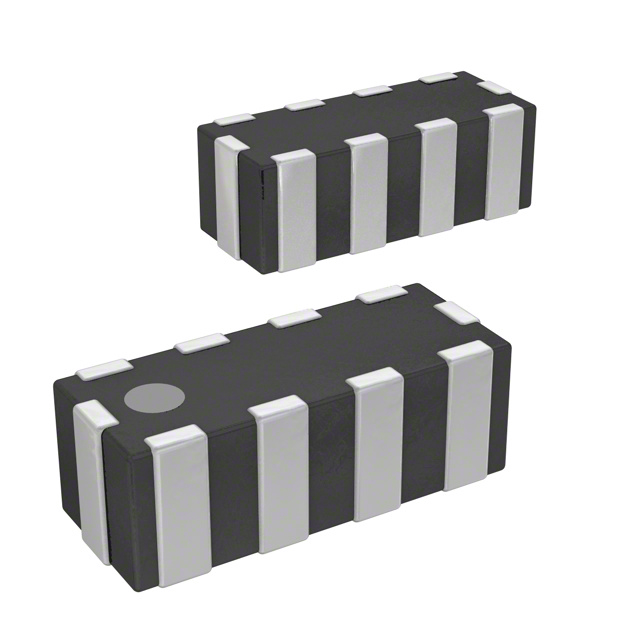

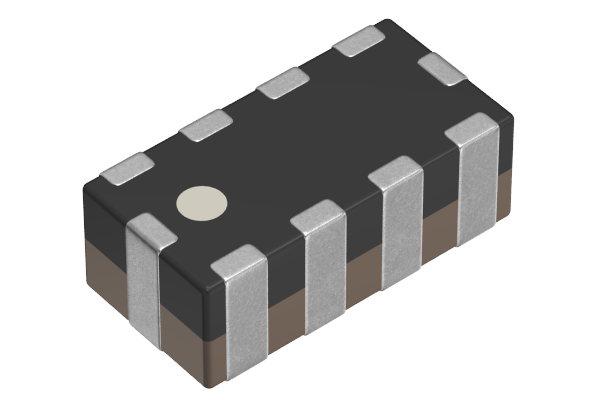

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MEA2010LC220T002
Manufacturer

TDK
ChipWorker Part#

CW26849650
Category

RFI Shielding
Package

0804
Description

EMI Filter 3-Terminal Array 20dB 0.1A 6.3VAC/6.3VDC Flat Style SMD T/R
Documentation

Datasheet

MEA2010LC220T002 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MEA2010LC220T002 Specifications

Attribute	Attribute Value

Part Number	MEA2010LC220T002
Manufacturer	TDK
ChipWorker Part#	CW26849650
Category	RFI Shielding
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	2010
Case/Package	0804
Capacitance	22 pF
Number of Channels	4 Channel
Current Rating (Max)	0.1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	6.3 V
	expand all
Size-Length	2 mm
Size-Width	1 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

FEATURES • This array type MEA2010L consists of 4-line SMD filters in one chip. • This type is suitable for the celluar phone. • This type corresponds to a lead-free soldering method. APPLICATIONS Signal line noise elimination for cellular phones, digital still camera, etc
