MJL3281A - ON Semiconductor

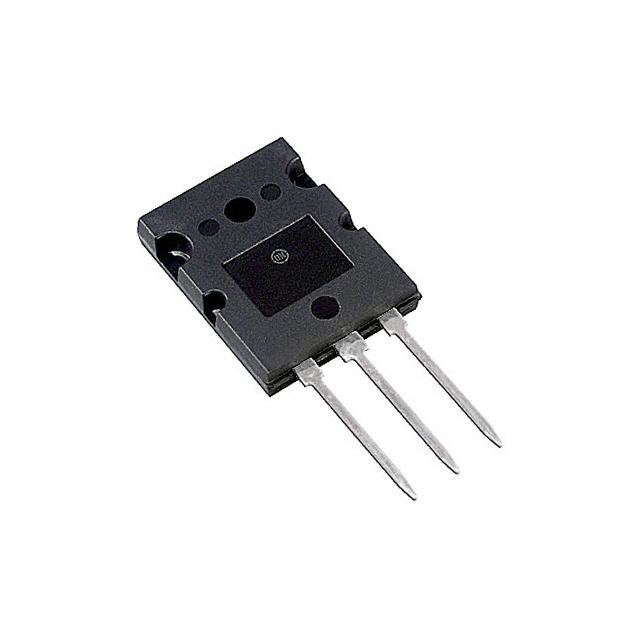

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MJL3281A
Manufacturer

ON Semiconductor
ChipWorker Part#

CW61729441
Category

BJT Transistor, BJT
Package

TO-264-3
Description

TO-3BPL NPN 200V 15A
Documentation

Datasheet

MJL3281A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

MJL3281A Specifications

Attribute	Attribute Value

Part Number	MJL3281A
Manufacturer	ON Semiconductor
ChipWorker Part#	CW61729441
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Voltage Rating (DC)	200 V
Current Rating	15.0 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	260 V
Continuous Collector Current	15A
hFE Min	75 @5A, 5V
Input Power (Max)	200 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	200000 mW
	expand all
Material	Silicon
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

15 AMPERES COMPLEMENTARY SILICON POWER TRANSISTORS 260 VOLTS 200 WATTS
MJL3281A (NPN)
MJL1302A (PNP)
The MJL3281A and MJL1302A are PowerBasepower transistors for high power audio, disk head positioners and other linear
Features
•Exceptional Safe Operating Area
•NPN/PNP Gain Matching within 10% from 50 mA to 5 A
•Excellent Gain Linearity
•High BVCEO
•High Frequency
•Pb−Free Packages are Available
