MMBTA92 - Fairchild

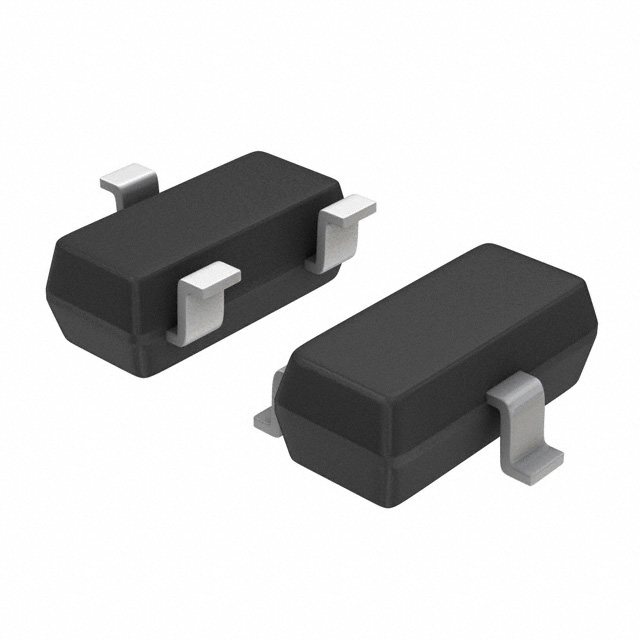

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MMBTA92
Manufacturer

Fairchild
ChipWorker Part#

CW6299477
Category

BJT Transistor, BJT
Package

SOT-23-3
Description

Transistor: NPN; bipolar; -300V; -500mA; 225mW; SOT23
Documentation

Datasheet

MMBTA92 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MMBTA92 Specifications

Attribute	Attribute Value

Part Number	MMBTA92
Manufacturer	Fairchild
ChipWorker Part#	CW6299477
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	50 MHz
Voltage Rating (DC)	-300 V
Current Rating	-500 mA
Power Rating	225 mW
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	350 mW
Breakdown Voltage (Collector to Emitter)	300 V
hFE Min	25 @30mA, 10V
Input Power (Max)	350 mW
DC Current Gain (hFE)	25
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350 mW
	expand all
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	0.93 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The MMBTA92 is a PNP Bipolar Transistor designed for high voltage driver applications. It offers -300V collector base voltage and -500mA continuous collector current.
-55 to 150°C Operating junction temperature range
