MPC507AP ,Analog Switch Ic, Analog Switch Multiplexer - TI

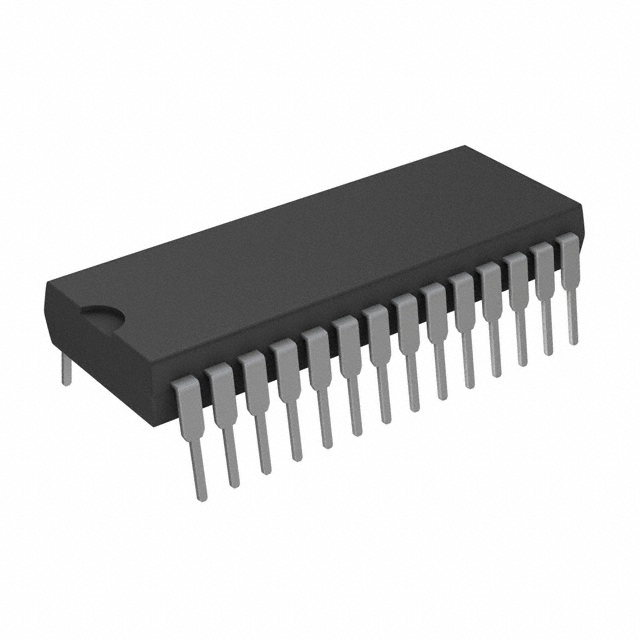

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

36 points

Part No

MPC507AP
Manufacturer

TI
ChipWorker Part#

CW78710837
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

PDIP-28
Description

Analog Multiplexer, 8:1, 2Circuits, 1.5KΩ, 700µA, ± 5V to ± 22V, DIP-28
Documentation

Datasheet
Ships from

Moscow
Наличие

914 pcs In Stock
Estimated Price

$ 5.98

Buy MPC507AP

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MPC507AP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MPC507AP Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MPC507AP
Manufacturer	TI
ChipWorker Part#	CW78710837
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Supply Voltage (DC)	5.00V (min)
Number of Outputs	2 Output
Supply Current	1.5 mA
Number of Circuits	2 Circuit
Number of Channels	8 Channel
Number of Positions	28 Position
Power Dissipation	2 W
Number of Inputs	16 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2 W
Supply Voltage	5.22 VDC
	expand all
Size-Length	37.4 mm
Size-Width	13.53 mm
Size-Height	4.07 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Similar & Replacement Parts

Similar products

Product Description

The MPC507AP is an 8-channel Differential Multiplexer. The multiplexer has input overvoltage protection. Analog input voltages may exceed either power supply voltage without damaging the device or disturbing the signal path of other channels. The protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand 70VPP signal levels and standard ESD tests. Signal sources are protected from short circuits should multiplexer power loss occur, each input presents a 1kR resistance under this condition. Digital inputs can also sustain continuous faults up to 4V greater than either supply voltage. The device is fabricated with BurrBrown"s dielectrically isolated CMOS technology.
70VPP Analog overvoltage protection
No channel interaction during overvoltage
Break-before-make switching
±15V Analog signal range
7.5mW (typical) Standby power
True second source
