MUR120RL - ON Semiconductor

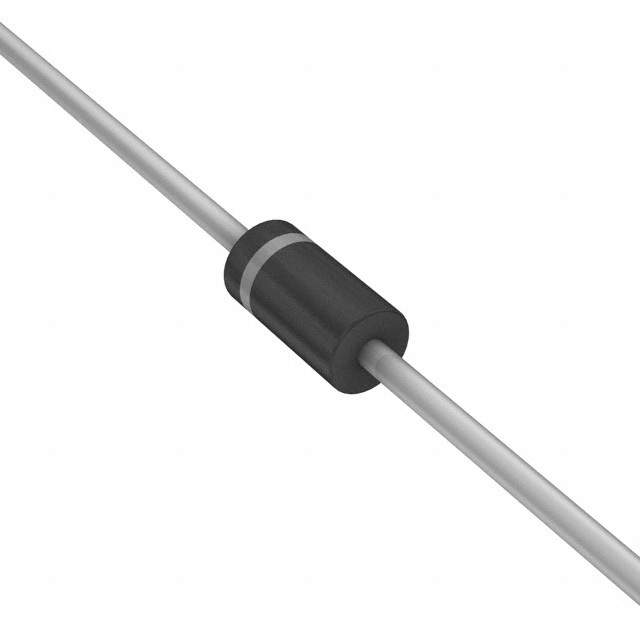

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MUR120RL
Manufacturer

ON Semiconductor
ChipWorker Part#

CW128558468
Category

Rectifier Diode
Package

DO-204AL
Description

Diode Switching 200V 1A 2Pin DO-41 T/R
Documentation

Datasheet

MUR120RL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MUR120RL Specifications

Attribute	Attribute Value

Part Number	MUR120RL
Manufacturer	ON Semiconductor
ChipWorker Part#	CW128558468
Category	Rectifier Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AL
Voltage Rating (DC)	200 V
Current Rating	1.00 A
Output Current	≤1.00 A
Forward Voltage	875mV @1A
Polarity	Standard
Reverse recovery time	35 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	5.2 mm
Size-Width	2.7 mm
Size-Height	2.7 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Diode Standard 200V 1A Through Hole Axial
