MX23A18NF1 - JAE Electronics

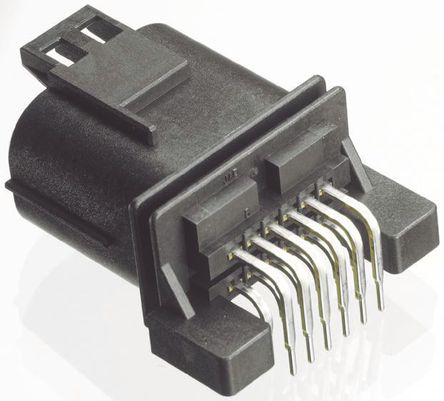

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MX23A18NF1
Manufacturer

JAE Electronics
ChipWorker Part#

CW50449437
Category

PCB Connector
Package

-
Description

Rectangular Power Connector, IP67, Through Hole, Header, 18Contacts, 2.5mm, Pin
Documentation

Datasheet

MX23A18NF1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MX23A18NF1 Specifications

Attribute	Attribute Value

Part Number	MX23A18NF1
Manufacturer	JAE Electronics
ChipWorker Part#	CW50449437
Category	PCB Connector
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	-
Number of Contacts	18 Contact
Gender	Male
Contact Plating	Tin
Current Rating	3 A
Number of Rows	2 Row
Number of Positions	18 Position
	expand all
Size-Length	38 mm
Size-Width	38.3 mm
Size-Height	18.3 mm
Color	Black
Contact Material	Copper
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Connector Header Through Hole, Right Angle 18 position 0.098" (2.50mm)
