NC7SZ32M5X ,Logic Control, Logic Gate IC - Fairchild

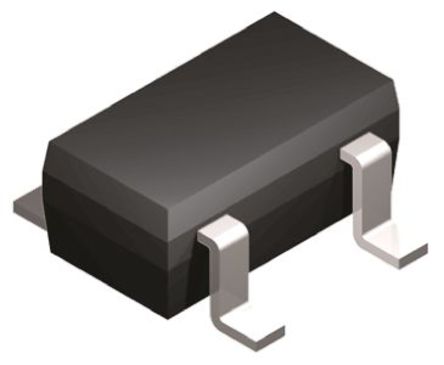

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

192 points

Part No

NC7SZ32M5X
Manufacturer

Fairchild
ChipWorker Part#

CW6750507
Category

Logic Control, Logic Gate IC
Package

SOT-23-5
Description

OR Gate 1Element 2IN CMOS 5Pin SOT-23 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1

Buy NC7SZ32M5X

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

NC7SZ32M5X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

NC7SZ32M5X Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	NC7SZ32M5X
Manufacturer	Fairchild
ChipWorker Part#	CW6750507
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	5.00 V
Number of Outputs	1 Output
Output Current	32 mA
Number of Circuits	1 Circuit
Number of Positions	5 Position
Number of Gates	1 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The NC7SZ32M5X is a single two-input OR Gate from ultra-high speed (UHS) series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage.
2.4ns Propagation delay (tPD)
±24mA High output drive at 3V
Matches performance of LCX operated at 3.3V VCC
Power down high-impedance Inputs/Outputs
Over-voltage tolerance inputs facilitate 5V to 3V translation
Proprietary noise/EMI reduction circuitry
