NCP170AMX180TCG - ON Semiconductor

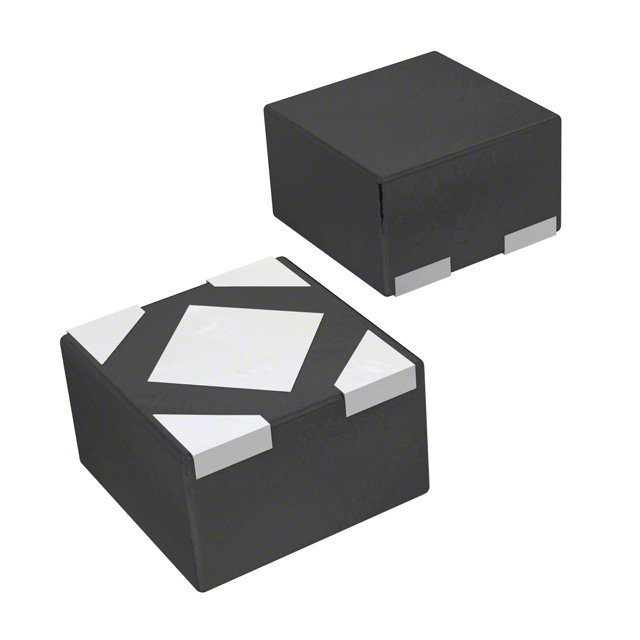

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCP170AMX180TCG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW34980703
Category

Voltage Regulator
Package

XDFN-4
Description

LDO Regulator Pos 1.8V 0.15A 4Pin XDFN T/R
Documentation

Datasheet

NCP170AMX180TCG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCP170AMX180TCG Specifications

Attribute	Attribute Value

Part Number	NCP170AMX180TCG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW34980703
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	XDFN-4
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	150 mA
Supply Current	0.9 µA
Number of Positions	4 Position
voltage rating	0.35V @150mA
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Output Voltage (Min)	1.8 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	5.5 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1 × 1 mm xDFN4 and SOT-563 packages.
Features | | Benefits
---|---|---
| | | | |
Ultra Low Quiescent current 500nA
| |
Improved battery life
Very Low Dropout, 170mV at 150mA
| |
Low power dissipation at full load
Adaptive ground current proportional to load current
| |
Improved battery life
Wide Input Voltage Range 2.2V to 5.5V
| |
Suitable for battery powered applications
Small packages 1x1 mm XDFN4, SOT-563 and TSOP-5
| |
Reduced area for space constraint applications
Factory trimmed High output Voltage Accuracy +/- 1%
| |
Improved end product peformance
