NTLJD3115PT1G - ON Semiconductor

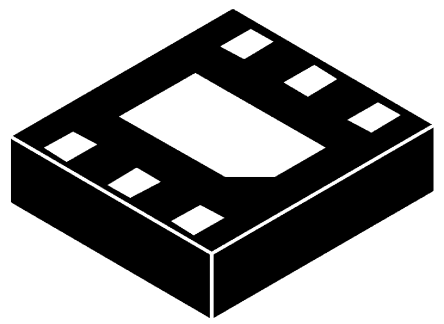

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTLJD3115PT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW22992940
Category

MOSFET, MOSFET Transistor
Package

WDFN-6
Description

Power MOSFET -20V -3.3A 100mOhm Dual P-Channel WDFN6, WDFN6 2x2, 0.65P, 3000-REEL
Documentation

Datasheet

NTLJD3115PT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTLJD3115PT1G Specifications

Attribute	Attribute Value

Part Number	NTLJD3115PT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW22992940
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Voltage Rating (DC)	-20.0 V
Current Rating	-4.10 A
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.075 Ω
Polarity	Dual P-Channel
Power Dissipation	1.5 W
Threshold Voltage	700 mV
Input Capacitance	531 pF
Gate Charge	6.20 nC
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	-3.30 A, 3.30 A
Input Capacitance (Ciss)	531pF @10V(Vds)
Input Power (Max)	710 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.3 W
	expand all
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Mosfet Array 2 P-Channel (Dual) 20V 2.3A 710mW Surface Mount 6-WDFN (2x2)
