NVMFS5C404NWFAFT1G - ON Semiconductor

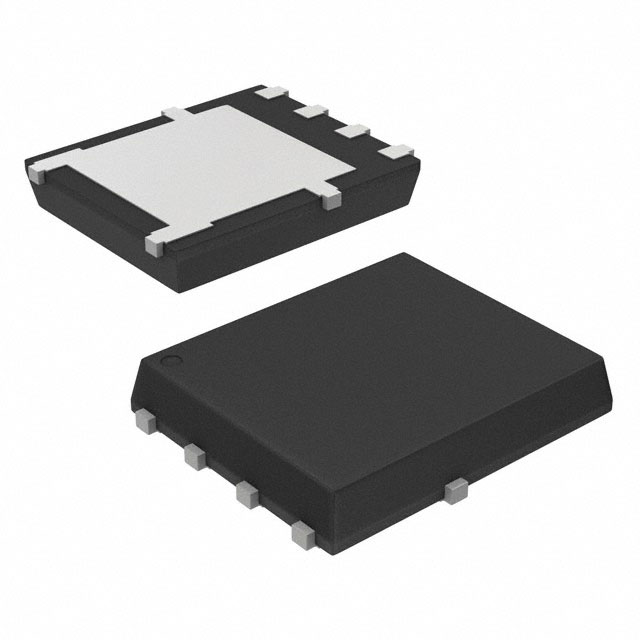

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NVMFS5C404NWFAFT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW338764000
Description

Power MOSFET 40V, 378A, 0.7mOhm, Single N-Channel, SO8-FL. Power MOSFET 40V, 378A, 0.7mOhm, Single N-Channel, SO8-F...
Documentation

Datasheet

NVMFS5C404NWFAFT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

NVMFS5C404NWFAFT1G Specifications

Attribute	Attribute Value

Part Number	NVMFS5C404NWFAFT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW338764000
Documentation	Datasheet
Number of Pins	5 Pin
Case/Package	SO-FL
Rise Time	113 ns
Input Capacitance (Ciss)	8400pF @25V(Vds)
Fall Time	109 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3900 mW
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

N-Channel 40V 53A (Ta), 378A (Tc) 3.9W (Ta), 200W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
