OPA2314AIDGKR - TI

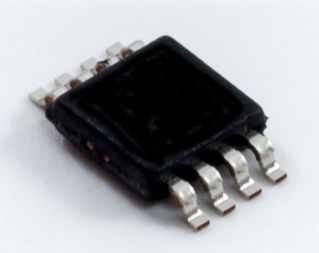

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OPA2314AIDGKR
Manufacturer

TI
ChipWorker Part#

CW3132553
Category

Operational Amplifier, OP Amp IC
Package

VSSOP-8
Description

TEXAS INSTRUMENTS OPA2314AIDGKR Operational Amplifier, 3MHz, 2, 1.5V/ s, 1.8V to 5.5V, 900mV to 2.75V, VSSOP, 8
Documentation

Datasheet

OPA2314AIDGKR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OPA2314AIDGKR Specifications

Attribute	Attribute Value

Part Number	OPA2314AIDGKR
Manufacturer	TI
ChipWorker Part#	CW3132553
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	150 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	66dB ~ 80dB
Input Offset Drift	1.00 µV/K
Bandwidth	3 MHz
Slew Rate	1.50 V/μs
Gain Bandwidth Product	3 MHz
Thermal Shutdown	No
Input Offset Voltage	500 µV
Input Bias Current	.2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Minimum CMRR Range	66 dB
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	expand all
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The OPA2314AIDGKR is a dual low-power general-purpose CMOS Operational Amplifier with rail-to-rail input and output. Low quiescent current (150µA typically at 5VS) combined with a wide bandwidth of 3MHz and very low noise (14nV/√Hz at 1kHz) make this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance. The low input bias current supports applications with MR source impedances. The robust design of the OPA314 devices provides ease-of-use to the circuit designer - unity-gain stability with capacitive loads of up to 300pF, an integrated RF/EMI rejection filter, no phase reversal in overdrive conditions and high electrostatic discharge (ESD) protection (4kV HBM).
Low noise
Unity-gain stable
Internal RF/EMI filter
150µA/channel Low IQ
14nV/√Hz at 1kHz Low noise
0.2pA Low input bias current
0.5mV Low offset voltage
1µV/°C Typical offset drift
80dB Typical CMRR
Green product and no Sb/Br
