OPA705NA/250 ,Operational Amplifier, OP Amp IC - TI

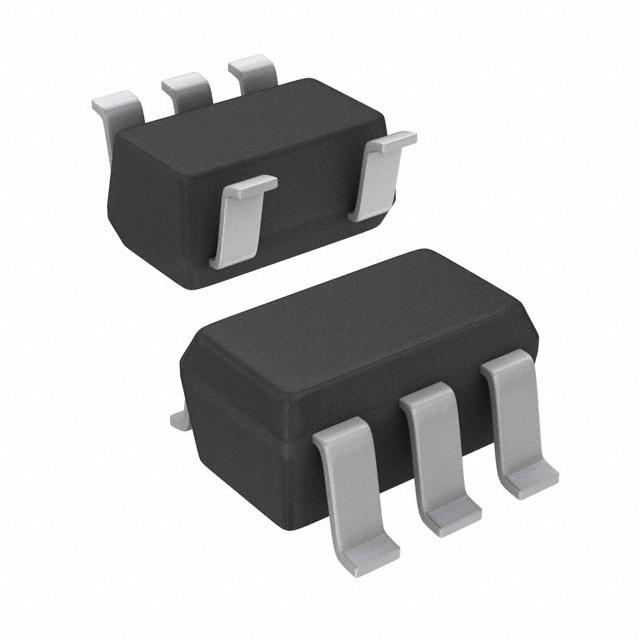

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

147 points

Part No

OPA705NA/250
Manufacturer

TI
ChipWorker Part#

CW13330640
Category

Operational Amplifier, OP Amp IC
Package

SOT-23-5
Description

TEXAS INSTRUMENTS OPA705NA/250 Operational Amplifier, Single, 1 Amplifier, 1MHz, 0.6V/µs, ± 2V to ± 6V, SOT-23, 5Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.47

Buy OPA705NA/250

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

OPA705NA/250 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

OPA705NA/250 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	OPA705NA/250
Manufacturer	TI
ChipWorker Part#	CW13330640
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Output Current	10mA @12V
Supply Current	160 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	66 dB
Input Offset Drift	4.00 µV/K
Bandwidth	1 MHz
Slew Rate	600 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	500 µV
Input Bias Current	1 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	66 dB
Supply Voltage (Max)	12 V
Supply Voltage (Min)	4 V
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
