OPL550A - TT Electronics/Optek Technology

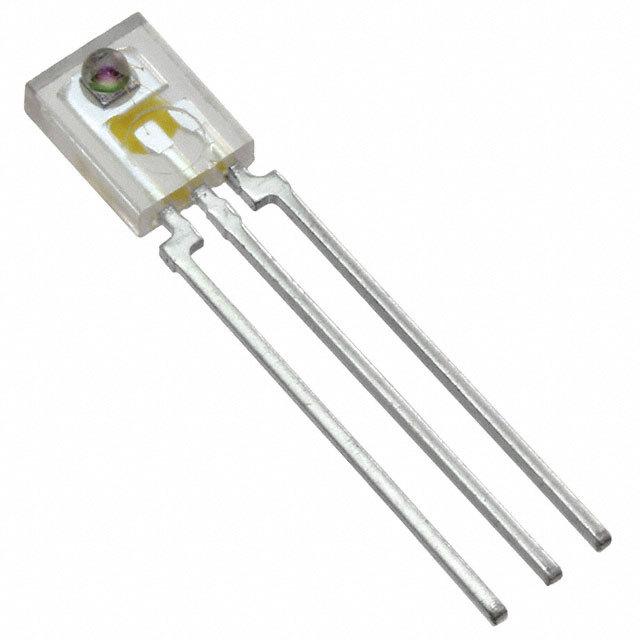

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OPL550A
Manufacturer

TT Electronics/Optek Technology
ChipWorker Part#

CW44530667
Category

Optical Sensor
Package

Side Looker
Description

OPTEK TECHNOLOGY OPL550A Optical Sensor, OPL550 Series, Photologic®, Totem Pole, 4.5V to 5.5V
Documentation

Datasheet

OPL550A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OPL550A Specifications

Attribute	Attribute Value

Part Number	OPL550A
Manufacturer	TT Electronics/Optek Technology
ChipWorker Part#	CW44530667
Category	Optical Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Side Looker
Supply Voltage (DC)	4.5V ~ 5.5V
Output Current	16 mA
Supply Current	8 mA
Number of Channels	1 Channel
Wavelength	935 nm
Power Dissipation	200 mW
Rise Time	25 ns
Output Voltage (Max)	35 V
Fall Time	25 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	2.34 mm
Size-Width	4.45 mm
Size-Height	5.72 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The OPL550 series Photologic Sensor that includes a photodiode, amplifier, voltage regulator, Schmitt trigger and NPN output transistor on a single silicon chip. All devices in the series have a Photologic® chip that is encapsulated in a molded plastic side-looking package with an integral lens. This packaging provides enhanced optical coupling, combined with mechanical protection. The hysteresis characteristics of the Schmitt trigger on each device offers high immunity to noise on input and VCC. These components exhibit very stable performance over a wide range of irradiance levels. OPL550 device features TTL/LSTTL compatible logic level output which can drive up to 8 TTL loads without additional circuitry and medium-speed data rates to 250 kBaud, with typical rise and fall times of 25 nanoseconds.
Choice of four output options
Choice of two sensitivity options
High noise immunity
Direct TTL, LSTTL, CMOS interface
Data rates to 250kBaud
Low power consumption
