PBSS4041NZ - NXP

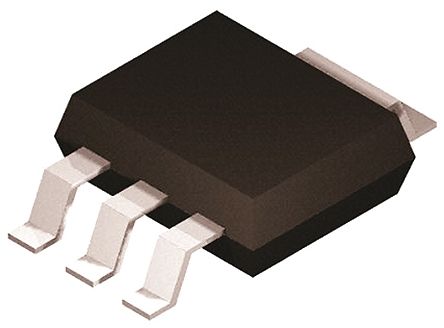

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PBSS4041NZ
Manufacturer

NXP
ChipWorker Part#

CW53470500
Category

BJT Transistor, BJT
Package

SOT-223
Description

SC-73 NPN 60V 7A
Documentation

Datasheet

PBSS4041NZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PBSS4041NZ Specifications

Attribute	Attribute Value

Part Number	PBSS4041NZ
Manufacturer	NXP
ChipWorker Part#	CW53470500
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223
Number of Positions	4 Position
Polarity	NPN
Power Dissipation	770 mW
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	7A
hFE Min	300
DC Current Gain (hFE)	500
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2600 mW
	expand all
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.8 mm
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The PBSS4041NZ is a 7A NPN breakthrough-in small signal (BISS) Transistor in a medium power surface-mount plastic package with increased heat-sink.
Very low collector-emitter saturation voltage VCEsat
High collector current capability IC and ICM
High collector current gain (hFE) at high IC
High energy efficiency due to less heat generation
Smaller required PCB area than for conventional transistors
AEC-Q101 qualified
PNP complement is PBSS4041PZ
PB4041NZ Marking code
