PC400J00000F ,Optocoupler, Optoisolator - Sharp

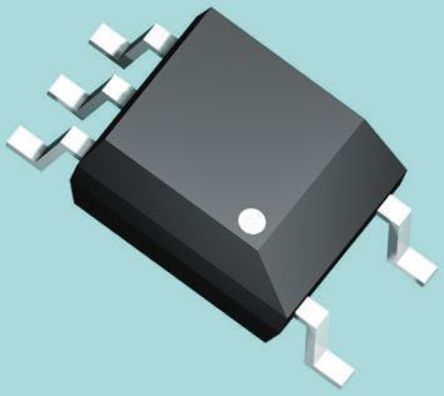

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

159 points

Part No

PC400J00000F
Manufacturer

Sharp
ChipWorker Part#

CW1050050
Category

Optocoupler, Optoisolator
Package

Mini-Flat
Description

Logic IC Output Optocoupler, 1Element, 3750V Isolation, MINI- FLAT, 5Pin
Documentation

Datasheet
Ships from

Moscow
Наличие

25332 pcs In Stock
Estimated Price

$ 0.46

Buy PC400J00000F

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PC400J00000F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PC400J00000F Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PC400J00000F
Manufacturer	Sharp
ChipWorker Part#	CW1050050
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	Mini-Flat
Rise/Fall Time	100ns, 50ns
Number of Channels	1 Channel
Number of Positions	5 Position
Forward Voltage	1.1 V
Power Dissipation	150 mW
Rise Time	0.1 µs
Isolation Voltage	3750 Vrms
Forward Current	50 mA
Input Current (Min)	50 mA
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	0.05 µs
Fall Time (Max)	0.5 µs
Fall Time (Max)	0.5 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	150 mW
Supply Voltage	3V ~ 15V
	expand all
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Logic Output Optoisolator Open Collector 3750Vrms 1 Channel CMTI 5-MFP
