PCA9554PW - TI

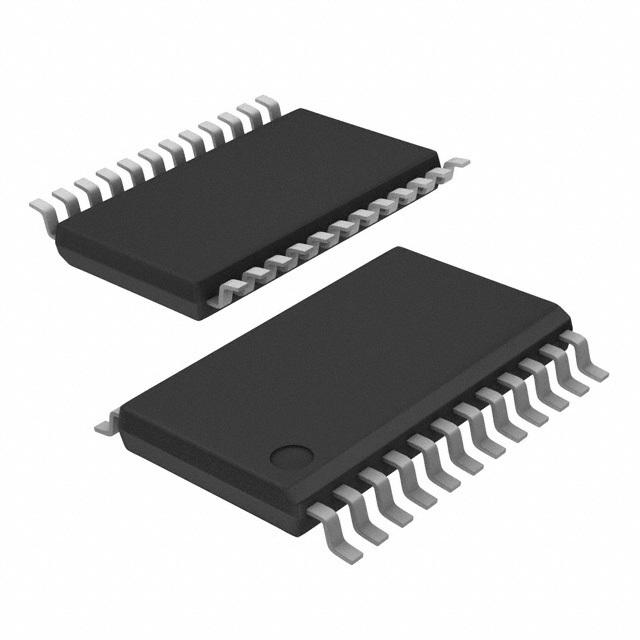

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PCA9554PW
Manufacturer

TI
ChipWorker Part#

CW14621589
Category

Interface IC, Interface Controller
Package

TSSOP-16
Description

TEXAS INSTRUMENTS PCA9554PW I/O Expander, 8Bit, 400kHz, I2C, SMBus, 2.3V, 5.5V, TSSOP
Documentation

Datasheet

PCA9554PW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PCA9554PW Specifications

Attribute	Attribute Value

Part Number	PCA9554PW
Manufacturer	TI
ChipWorker Part#	CW14621589
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	2.30V ~ 5.50V
Operating Voltage	5.50V (max)
Number of Outputs	8 Output
Supply Current	104 µA
Number of Positions	16 Position
Clock Speed	400 kHz
Voltage Nodes	2.70 V, 3.30 V, 3.60 V, 5.00 V
Number of Inputs and Outputs	8 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The PCA9554PW is a remote 8-bit I²C and SMBus I/O Expander with interrupt output and configuration registers designed for VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface (serial clock (SCL), serial data (SDA)). The PCA9554 consists of one 8-bit configuration (input or output selection), input, output and polarity inversion (active high or active low) registers. At power on, the I/Os are configured as inputs with a weak pull up to VCC. However, the system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding input or output register. The polarity of the input port register can be inverted with the polarity inversion register. All registers can be read by the system master.
I²C to parallel port expander
Open-drain active-low interrupt output
Three hardware address pins allow up to eight devices
Input/output configuration register
Polarity inversion register
Internal power-on reset
Power-up with all channels configured as inputs
No glitch on power up
Latch-up performance exceeds 100mA per JESD 78
ESD protection exceeds JESD 22
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

expand all
