PMEG4005EH ,Schottky Diode - NXP

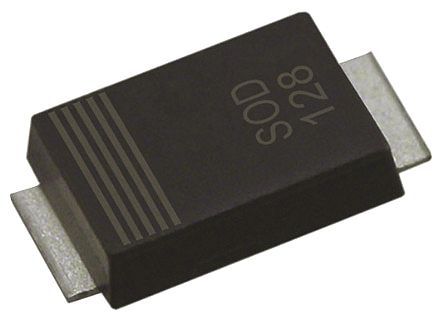

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

49 points

Part No

PMEG4005EH
Manufacturer

NXP
ChipWorker Part#

CW133312300
Category

Schottky Diode
Package

SOD-123F
Description

NXP PMEG4005EH Small Signal Schottky Diode, Single, 40V, 500mA, 470mV, 10A, 150℃
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.08

Buy PMEG4005EH

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PMEG4005EH Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PMEG4005EH Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PMEG4005EH
Manufacturer	NXP
ChipWorker Part#	CW133312300
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123F
Number of Positions	2 Position
Forward Voltage	470 mV
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	10 A
Maximum Forward Voltage (Max)	470 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	150 ℃
	expand all
Size-Length	2.7 mm
Size-Width	1.7 mm
Size-Height	1.2 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The PMEG4005EH is a planar maximum efficiency general application (MEGA) Schottky Barrier Rectifier with an integrated guard ring for stress protection, encapsulated in a small surface-mounted device (SMD) package. It is used for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supply, inverse polarity protection and low power consumption applications.
Very low forward voltage
Flat lead SMD package
AEC-Q101 qualified

expand all
