PTH08T260W - TI

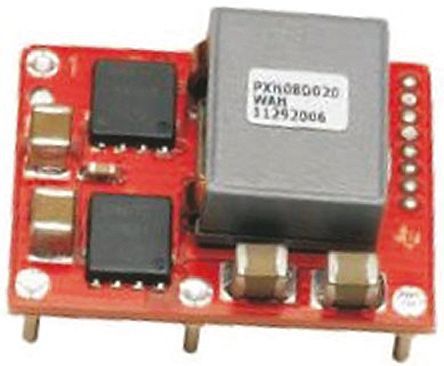

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

20 points

Part No

PTH08T260W
Manufacturer

TI
ChipWorker Part#

CW294578821
Package

10Surface Mount Module, 10Through-Hole Module
Description

3A, 4.5V to 14V Input, Non-Isolated, Wide Output, Adjustable Power Module with TurboTrans
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy PTH08T260W

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PTH08T260W Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PTH08T260W Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PTH08T260W
Manufacturer	TI
ChipWorker Part#	CW294578821
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	10Surface Mount Module, 10Through-Hole Module
	expand all
Product Lifecycle Status
RoHS	Non-Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The PTH08T260/261W is the higher input voltage (4.5 V to 14 V) version of the PTH04T260/261W (2.2V to 5.5V), 3-A rated, non-isolated power module. This regulator represents the 2nd generation of the PTH series of power modules which include a reduced footprint and improved features. The PTH08T261W is optimized to be used in applications requiring all ceramic capacitors.
Operating from an input voltage range of 4.5V to 14V, the PTH08T260/261W requires a single resistor to set the output voltage to any value over the range, 0.69V to 5.5V. The wide input voltage range makes the PTH08T260/261W particularly suitable for advanced computing and server applications that use a loosely regulated 8-V to 12-V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5-V, 8-V, or 12-V intermediate bus architectures.
The module incorporates a comprehensive list of features. Output over-current and over-temperature shutdown protects against most load faults. A differential remote sense ensures tight load regulation. An adjustable under-voltage lockout allows the turn-on voltage threshold to be customized. Auto-Track sequencing is a popular feature that greatly simplifies the simultaneous power-up and power-down of multiple modules in a power system.
The PTH08T260/261W includes new patent pending technologies,*TurboTrans™** and **SmartSync**. The TurboTrans feature optimizes the transient response of the regulator while simultaneously reducing the quantity of external output capacitors required to meet a target voltage deviation specification. Additionally, for a target output capacitor bank, TurboTrans can be used to significantly improve the regulator"s transient response by reducing the peak voltage deviation. SmartSync allows for switching frequency synchronization of multiple modules, thus simplifying EMI noise suppression tasks and reduces input capacitor RMS current requirements. Double-sided surface mount construction provides a low profile and compact footprint. Package options include both through-hole and surface mount configurations that are lead (Pb) - free and RoHS compatible.
Up to 3-A Output Current
4.5-V to 14-V Input Voltage
Wide-Output Voltage Adjust (0.69 V to 5.5 V)
±1.5% Total Output Voltage Variation
Efficiencies up to 95%
Output Overcurrent Protection (Nonlatching, Auto-Reset)
Operating Temperature: -40°C to 85°C
Safety Agency Approvals
UL/IEC/CSA-C22.2 60950-1
Prebias Startup
On/Off Inhibit
Differential Output Voltage Remote Sense
Adjustable Undervoltage Lockout
Auto-Track™ Sequencing
Ceramic Capacitor Version (PTH08T261W)
TurboTrans™ Technology
Designed to meet Ultra-Fast Transient
Requirements up to 300 A/µs
SmartSync Technology
