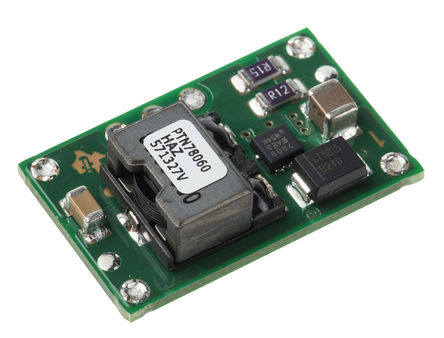

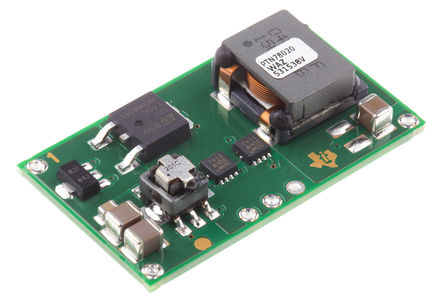

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PTN78000AAZ
Manufacturer

TI
ChipWorker Part#

CW19686554
Category

DC to DC Converter
Package

DIP-5
Description

Module DC-DC 1Out -3V to -15V 1.5A 5Pin DIP SMD Module Tray
Documentation

Datasheet

PTN78000AAZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PTN78000AAZ Specifications

Attribute	Attribute Value

Part Number	PTN78000AAZ
Manufacturer	TI
ChipWorker Part#	CW19686554
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	DIP-5
Frequency	550 kHz
Supply Voltage (DC)	12.0 V
Power Rating	9 W
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 29.0V
Output Voltage	-3.30 V, -15.0 V (min)
Output Current	1.5 A
Number of Regulated Outputs	1 Output
Output Power	9 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck, Boost
Input Voltage (Max)	28.7 V
Input Voltage (Min)	7 V
Input Voltage (DC Max)	28.7 V
Input Voltage (DC Min)	7 v
Output Current (Max)	1.5 A
Input Power (Max)	9 W
Input Power (Max)	9 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	7V ~ 29V
	expand all
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The PTN78000AAZ is a 9W surface-mount non-isolated adjustable buck-boost Switching Regulator with wide negative output. The PTN78000A is a series of high-efficiency integrated switching regulators (ISR), that represent the third generation in the evolution of the PT78NR100 series of products. In new designs, it should be considered in place of the PT78NR100 series of single in-line pin (SIP) products. The PTN78000A is smaller and lighter than its predecessor and has either similar or improved electrical performance characteristics. Operating from a wide-input voltage range, the PTN78000A provides high-efficiency, positive-to-negative voltage conversion for loads of up to 1.5A. The output voltage is set using a single external resistor and may be set to any value within the range, -15 to -3V. The PTN78000A has under-voltage lockout and is suited to a wide variety of general-purpose applications that operate off 12, 24 or tightly regulated 28VDC power.
Wide-input voltage (7 V to 29 V)
Wide-output voltage adjust (-15 to -3V)
High efficiency (up to 84%)
Output current limit
Overtemperature shutdown

expand all
