PVN013SPBF - Infineon

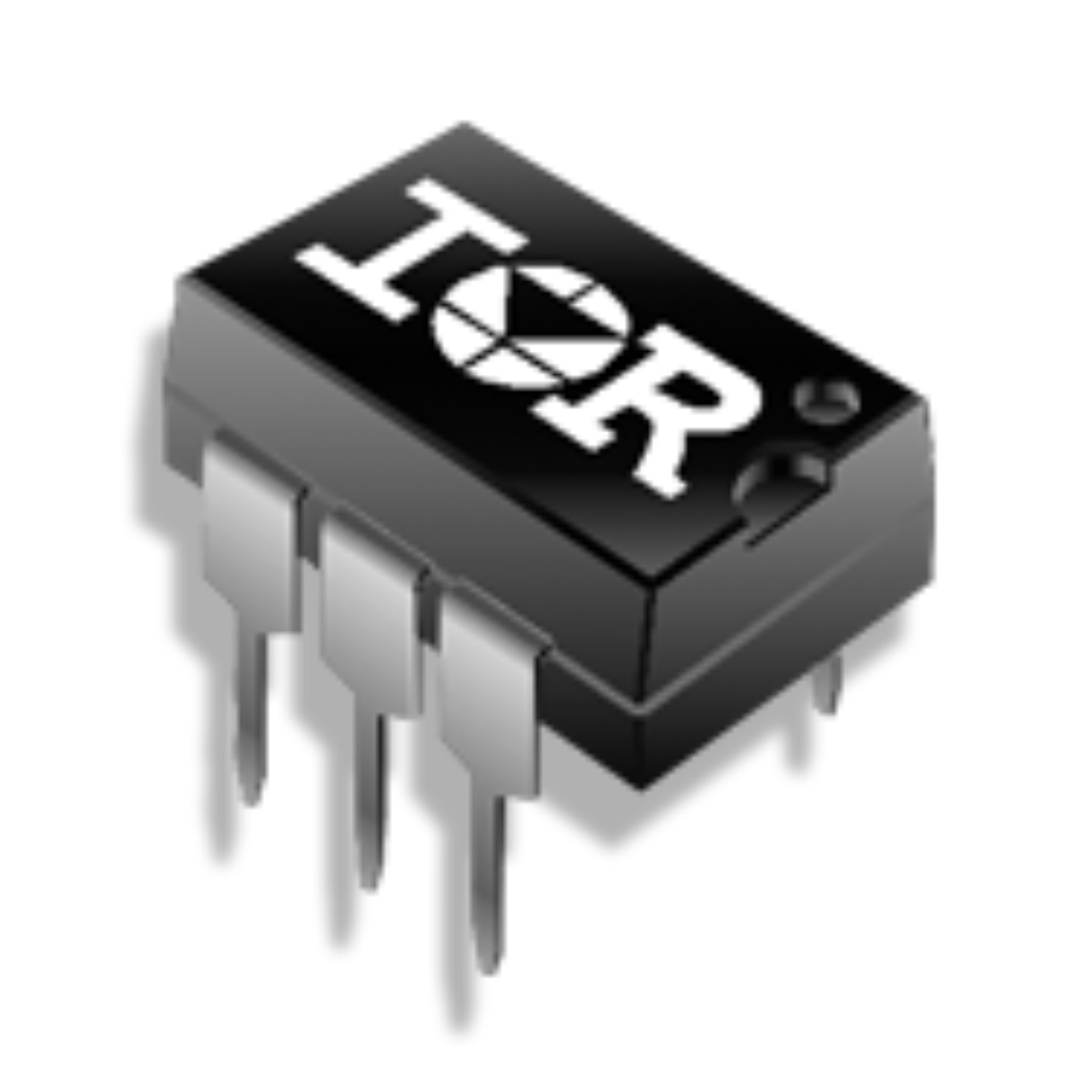

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PVN013SPBF
Manufacturer

Infineon
ChipWorker Part#

CW67209977
Category

Solid State Relay
Package

SMD-6
Description

Relay SSR 25mA DC-IN 2.5A 20V AC-DC-OUT 6Pin PDIP SMT T/R
Documentation

Datasheet

PVN013SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PVN013SPBF Specifications

Attribute	Attribute Value

Part Number	PVN013SPBF
Manufacturer	Infineon
ChipWorker Part#	CW67209977
Category	Solid State Relay
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD-6
Output Current	2.5 A
Contacts Type	SPST-NO
Load Current	2.5 A
Isolation Voltage	4 kV
Forward Current	25 mA
Output Voltage (Max)	20 V
Input Current (Min)	25 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	1.2 VDC
	expand all
Size-Height	3.42 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

20V 1 Form A Photo Voltaic Relay in a 6-pin SMT Package
