SBR40U300CT - Diodes

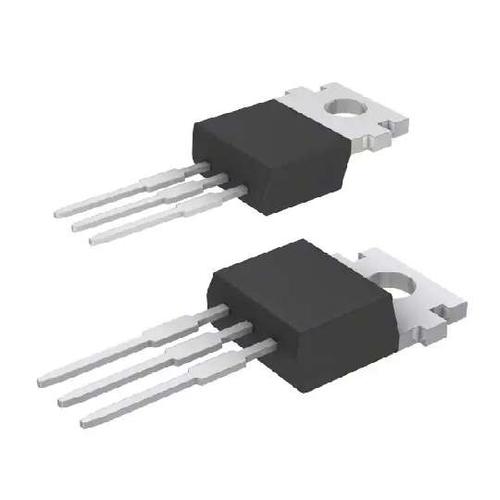

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SBR40U300CT
Manufacturer

Diodes
ChipWorker Part#

CW47665244
Category

Diode Array, TVS Diode Array
Package

TO-220-3
Description

Diode Switching 300V 40A Automotive 3Pin(3+Tab) TO-220AB T/R
Documentation

Datasheet

SBR40U300CT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SBR40U300CT Specifications

Attribute	Attribute Value

Part Number	SBR40U300CT
Manufacturer	Diodes
ChipWorker Part#	CW47665244
Category	Diode Array, TVS Diode Array
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Forward Voltage	0.89 V
Reverse recovery time	50 ns
Forward Current	40 A
Max Forward Surge Current (Ifsm)	235 A
Maximum Forward Voltage (Max)	890mV @20A
Forward Current (Max)	40 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 175℃
	expand all
Size-Length	10.66 mm
Size-Width	4.82 mm
Size-Height	9.01 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

SBR40U300CT Series 300 V 20 A Flange Mount Super Barrier Rectifier - TO-220AB
