SD0805S020S0R5 ,Schottky Diode - AVX

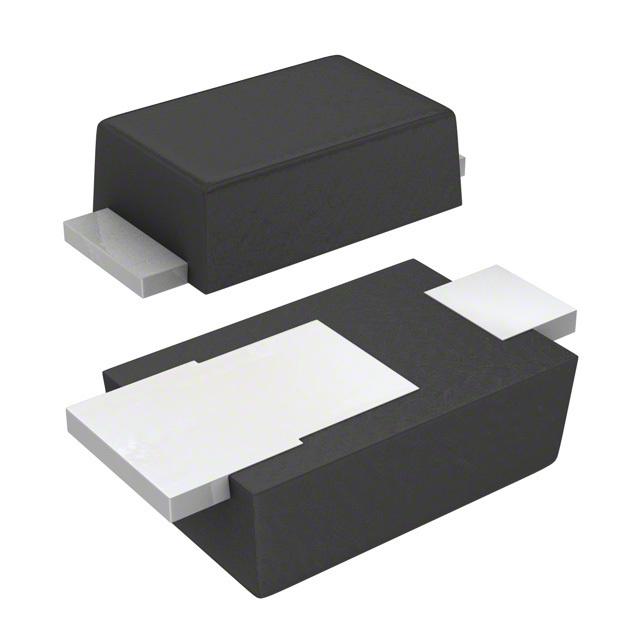

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

80 points

Part No

SD0805S020S0R5
Manufacturer

AVX
ChipWorker Part#

CW43931729
Category

Schottky Diode
Package

0805
Description

Small Signal Schottky Diode, Single, 20V, 500mA, 440mV, 5A, 125 C
Documentation

Datasheet
Ships from

Moscow
Наличие

319419 pcs In Stock
Estimated Price

$ 0.05

Buy SD0805S020S0R5

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SD0805S020S0R5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SD0805S020S0R5 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SD0805S020S0R5
Manufacturer	AVX
ChipWorker Part#	CW43931729
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0805
Number of Positions	2 Position
Forward Voltage	0.44 V
Thermal Resistance	110℃/W (RθJL)
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	5 A
Maximum Forward Voltage (Max)	440 mV
Forward Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The SD0805S020S0R5 is a Schottky Barrier Rectifier Diode in FRP substrate with epoxy under-fill case and solderable lead-free tin-plated per MIL-STD-750 terminals. It offers unique lead-less chip which technology eliminates the lead frame wire bond to give the chip top-bottom symmetry for fewer mounting problems, better heat transfer and current handling capability (compared to SOD devices). It is suitable for use in switch mode power supplies, high-frequency rectification and reverse bias protection applications.
