SM5817 - Diotec Semiconductor

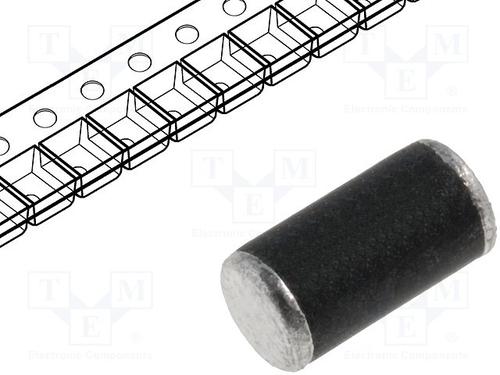

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SM5817
Manufacturer

Diotec Semiconductor
ChipWorker Part#

CW18359934
Package

DO-213AB
Description

Diode: Schottky rectifying; SMD; 20V; 1A; DO213AB
Documentation

Datasheet

SM5817 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SM5817 Specifications

Attribute	Attribute Value

Part Number	SM5817
Manufacturer	Diotec Semiconductor
ChipWorker Part#	CW18359934
Documentation	Datasheet
Number of Pins	2 Pin
Case/Package	DO-213AB
Forward Voltage	0.75 V
Forward Current	1000 mA
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
ECCN Code	EAR99
