SN74HC04DR ,Logic Control, Logic Gate IC - TI

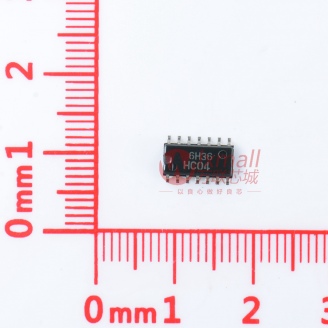

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

235 points

Part No

SN74HC04DR
Manufacturer

TI
ChipWorker Part#

CW560200
Category

Logic Control, Logic Gate IC
Package

SOIC-14
Description

Inverter, 74HC04, 1Input, 5.2mA, 2V to 6V, SOIC-14
Documentation

Datasheet
Ships from

Moscow
Наличие

27544 pcs In Stock
Estimated Price

$ 0.08

Buy SN74HC04DR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SN74HC04DR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SN74HC04DR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SN74HC04DR
Manufacturer	TI
ChipWorker Part#	CW560200
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	2.00V ~ 6.00V
Output Current	5.2 mA
Number of Circuits	6 Circuit
Number of Positions	14 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	20.0 ns
Voltage Nodes	6.00 V, 5.00 V, 2.00 V
Number of Gates	6 Gate
Output Current Drive	-1.00 mA
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Look no further than the SN74HC04DR inverting Schmitt trigger, developed by Texas Instruments, for all of your analog signal conversion needs. This inverting Schmitt trigger has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
