Part No

SN74LVC125A
Manufacturer

TI
ChipWorker Part#

CW355831467
Package

TSSOP-14
Description

QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS
Documentation

Datasheet
Ships from

Moscow
Наличие

200 pcs In Stock
Estimated Price

$ 0.08

Buy SN74LVC125A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SN74LVC125A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SN74LVC125A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SN74LVC125A
Manufacturer	TI
ChipWorker Part#	CW355831467
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	TSSOP-14
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

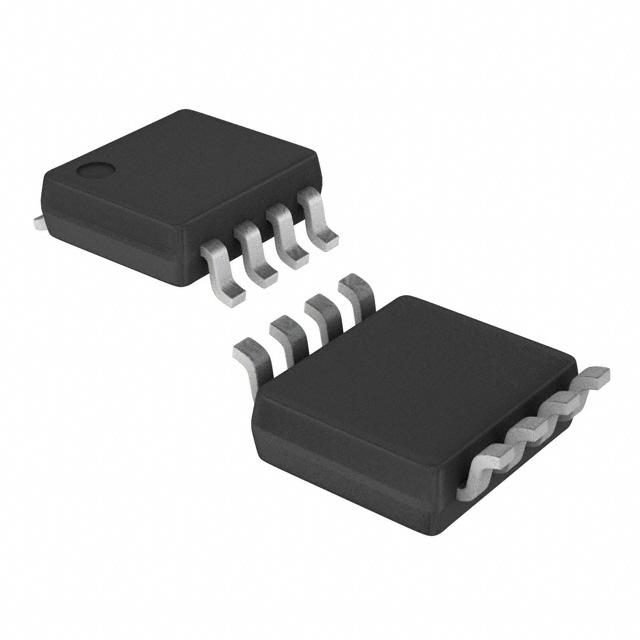

74AUC2G125DCURE4

IDT74ALVC125

Integrated Device Technology

Product Description

This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVC125A device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.
3-State Outputs
Separate OE for all 4 buffers
Operates From 1.65 V to 3.6 V
Specified From –40°C to 85°C
and –40°C to 125°C
Inputs Accept Voltages to 5.5 V
Max tpd of 4.8 ns at 3.3 V
Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
Latch-Up Performance Exceeds 250 mA
Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model
200-V Machine Model
1000-V Charged-Device Model
APPLICATIONS
Cable Modem Termination Systems
IP Phones: Wired and Wireless
Optical Modules
Optical Networking:
EPON or Video Over Fiber
Point-to-Point Microwave Backhaul
Power: Telecom DC/DC Modules:
Analog or Digital
Private Branch Exchanges (PBX)
TETRA Base Stations
Telecom Base Band Units
Telecom Shelters:
Filter Units
Power Distribution Units (PDU)
Power Monitoring Units (PMU)
Wireless Battery Monitoring
Remote Electrical Tilt Units (RET)
Remote Radio Units (RRU)
Tower Mounted Amplifiers (TMA)
Vector Signal Analyzers and Generators
Video Conferencing: IP-Based HD
WiMAX and Wireless Infrastructure Equipment
Wireless Communications Testers
xDSL Modems and DSLAM
