SN74LVC2G04DCKT - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74LVC2G04DCKT
Manufacturer

TI
ChipWorker Part#

CW4319911
Category

Logic Control, Logic Gate IC
Package

SC-70-6
Description

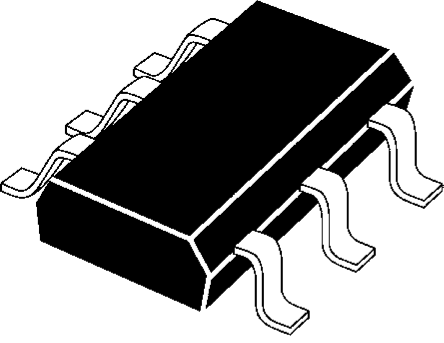

TEXAS INSTRUMENTS SN74LVC2G04DCKT Inverter, 74LVC2G04, 1Input, 32mA, 1.65V to 5.5V, SC-70-6
Documentation

Datasheet

SN74LVC2G04DCKT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74LVC2G04DCKT Specifications

Attribute	Attribute Value

Part Number	SN74LVC2G04DCKT
Manufacturer	TI
ChipWorker Part#	CW4319911
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Supply Voltage (DC)	1.65V (min)
Output Current	32 mA
Number of Circuits	2 Circuit
Number of Positions	6 Position
Number of Bits	2 Bit
Propagation Delay Max (tpd)	3.20 ns
Number of Gates	2 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Description
This dual inverter is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G04 device performs the Boolean function Y = A.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Features
• Available in the Texas Instruments NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Applications
• IP Phones: Wired and Wireless
• Optical Modules
• Optical Networking: EPON and Video Over Fiber
• Point-to-Point Microwave Backhaul
• Power: Telecom DC/DC Module: Analog and Digital
• Private Branch Exchanges (PBX)
• TETRA Base Exchanges
• Telecom Base Band Units
• Telecom Shelters: Power Distribution Units (PDU), Power Monitoring Units (PMU), Wireless Battery Monitoring, Remote Electrical Tilt Units (RET), Remote Radio Units (RRU), Tower Mounted
