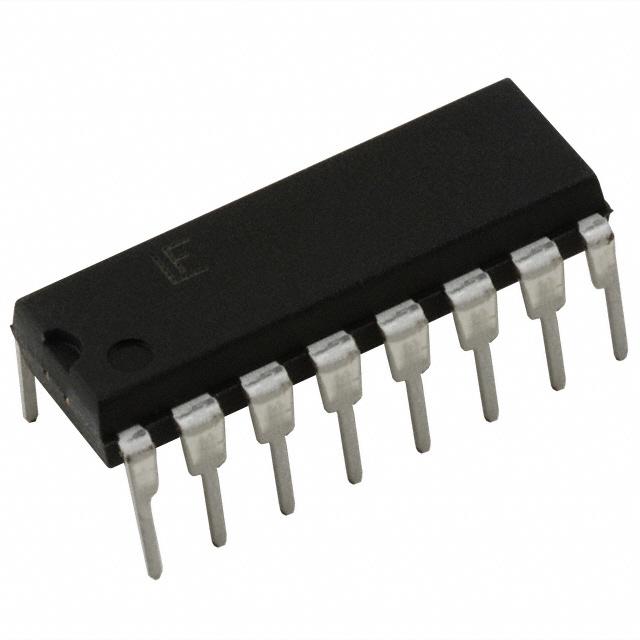

SP720AP ,TVS Diode - Littelfuse
The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
34 points
Payment Methods and Delivery
{{ estimate }}
Buy SP720AP
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
SP720AP Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
SP720AP Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | SP720AP | |
| Manufacturer | Littelfuse | |
| ChipWorker Part# | CW90198400 | |
| Category | TVS Diode | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 16 Pin | |
| Case/Package | PDIP-16 | |
| Voltage Rating (DC) | 30.0 V | |
| Capacitance | 3.00 pF | |
| Breakdown Voltage | 30 V | |
| Supply Current | 200 mA | |
| Number of Circuits | 14 Circuit | |
| Number of Channels | 14 Channel | |
| Input Capacitance | 3.00 pF | |
| Operating Temperature (Max) | 105 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Junction Temperature | 150 ℃ | |
| expand all | ||
| Size-Length | 19.7 mm | |
| Size-Width | 7.11 mm | |
| Size-Height | 4.95 mm | |
| Operating Temperature | -40℃ ~ 105℃ | |
| Product Lifecycle Status | Obsolete | |
| Packaging | Tube | |
| RoHS | Non-Compliant | |
| Lead-Free Status | Contains Lead |
Similar & Replacement Parts
Similar products
Product Description
- The SP720 is an array of SCR/Diode bipolar structures for ESD and over-voltage protection to sensitive input circuits. The SP720 has 2 protection SCR/Diode device structures per input. A total of 14 available inputs can be used to protect up to 14 external signal or bus lines. Over-voltage protection is from the IN (pins 1-7 and 9-15) to V+ or V-.
- Features
- • ESD Interface Capability for HBM Standards
- \- MIL STD 3015.7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15kV
- \- IEC 61000-4-2, Direct Discharge,
- Single Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4kV (Level 2)
- Two Inputs in Parallel . . . . . . . . . . . . . . . . . . . . . . . . 8kV (Level 4)
- \- IEC 61000-4-2, Air Discharge. . . . . . . . . . . . . . . . . 15kV (Level 4)
- • High Peak Current Capability
- \- IEC 61000-4-5 (8/20µs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3A
- \- Single Pulse, 100µs Pulse Width. . . . . . . . . . . . . . . . . . . . . . . ±2A
- \- Single Pulse, 4µs Pulse Width. . . . . . . . . . . . . . . . . . . . . . . . . ±5A
- • Designed to Provide Over-Voltage Protection
- \- Single-Ended Voltage Range to . . . . . . . . . . . . . . . . . . . . . . +30V
- \- Differential Voltage Range to. . . . . . . . . . . . . . . . . . . . . . . . . ±15V
- • Fast Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ns Risetime
- • Low Input Leakages . . . . . . . . . . . . . . . . . . . . . . . . . 1nA at 25°C (Typ)
- • Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3pF (Typ)
- • An Array of 14 SCR/Diode Pairs
- • Operating Temperature Range . . . . . . . . . . . . . . . . . . . . -40°C to 105°C
