ST3241EBPR - ST Microelectronics

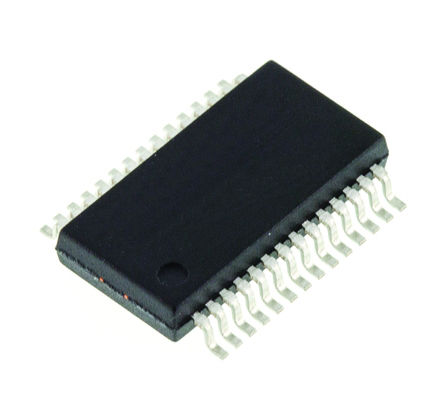

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ST3241EBPR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW10168359
Category

Interface IC, Interface Controller
Package

SSOP-28
Description

15kV ESD PROTECTED 3 TO 5.5V, 400KBPS RS-232 TRANSCEIVER WITH AUTO-POWERDOWN
Documentation

Datasheet

ST3241EBPR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ST3241EBPR Specifications

Attribute	Attribute Value

Part Number	ST3241EBPR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW10168359
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Current	1 mA
Number of Positions	28 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	10.5 mm
Size-Width	5.6 mm
Size-Height	1.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The ST3241E device consists of 3 drivers, 5 receivers, and a dual charge-pump circuit. The device meets the requirements of EIA/TIA and V.28/V.24 communication standards providing high data rate capability and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±8 kV using IEC 1000-4-2 contact discharge and ±15 kV using the human body model. The receiver R2 is always active to implement a wake-up feature for the serial port.
The ST3241E has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0 V to 5.5 V supply with a dual charge pump. The device is guaranteed to run at data rates of 250 kbps while maintaining RS-232 output levels.
It is a complete serial port (3 drivers, 5 receivers) intended for notebook or sub-notebook computers. Receivers R1 and R2 have extra outputs in addition to their standard outputs. These extra outputs are always active.
Typical applications are in notebooks, sub-notebooks, palmtop computers, battery-powered equipment, hand-held equipment, peripherals, and printers.
**Key Features**
ESD protection for RS-232 I/O pins: ±8 kV IEC 1000-4-2 contact discharge ±15 kV human body model
1 µA supply current achieved when in auto power-down
250 kbps minimum guaranteed data rate
Guaranteed 6 V/µs slew rate range
Guaranteed mouse drive ability
0.1 µF external capacitors
Meets EIA/TIA-232 specifications down to 3 V
Available in SSOP 28 package
