STD8N80K5 - ST Microelectronics

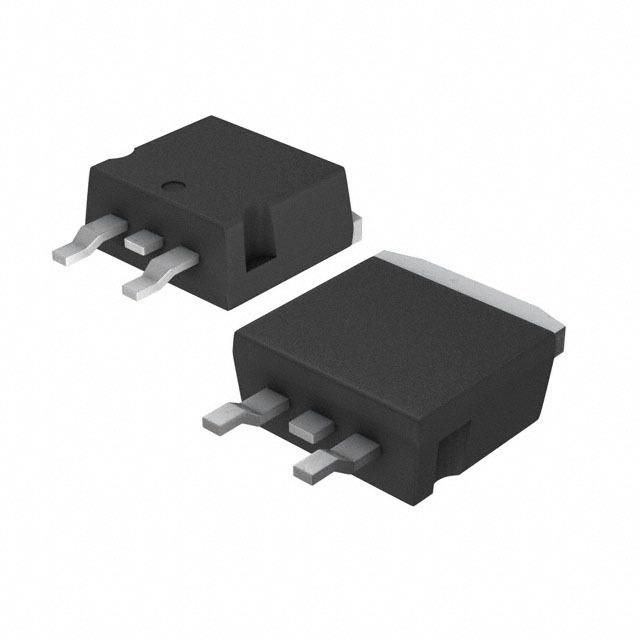

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STD8N80K5
Manufacturer

ST Microelectronics
ChipWorker Part#

CW9850421
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

Trans MOSFET N-CH 800V 6A 3Pin DPAK T/R
Documentation

Datasheet

STD8N80K5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STD8N80K5 Specifications

Attribute	Attribute Value

Part Number	STD8N80K5
Manufacturer	ST Microelectronics
ChipWorker Part#	CW9850421
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	950 mΩ
Power Dissipation	110 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	800 V
Breakdown Voltage (Drain to Source)	800 V
Rise Time	14 ns
Input Capacitance (Ciss)	450pF @100V(Vds)
Input Power (Max)	110 W
Fall Time	20 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	110W (Tc)
	expand all
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

N-Channel 800V 6A (Tc) 110W (Tc) Surface Mount DPAK
