STP190N55LF3 - ST Microelectronics

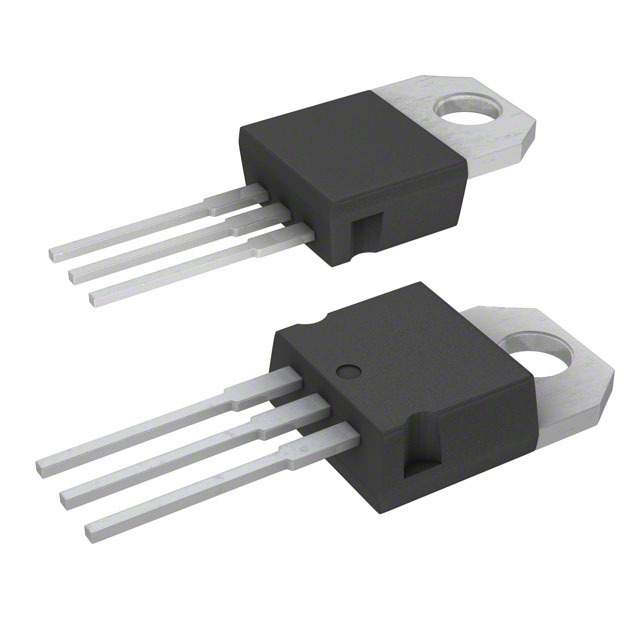

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STP190N55LF3
Manufacturer

ST Microelectronics
ChipWorker Part#

CW81470237
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220 N-CH 55V 120A
Documentation

Datasheet

STP190N55LF3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STP190N55LF3 Specifications

Attribute	Attribute Value

Part Number	STP190N55LF3
Manufacturer	ST Microelectronics
ChipWorker Part#	CW81470237
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Polarity	N-CH
Power Dissipation	312 W
Input Capacitance	6200 pF
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	120A
Rise Time	40 ns
Input Capacitance (Ciss)	6200pF @25V(Vds)
Input Power (Max)	312 W
Fall Time	40 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	312W (Tc)
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 55V 120A (Tc) 312W (Tc) Through Hole TO-220-3
