TLE8366EVXUMA1 - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE8366EVXUMA1
Manufacturer

Infineon
ChipWorker Part#

CW48409184
Category

DC to DC Converter
Package

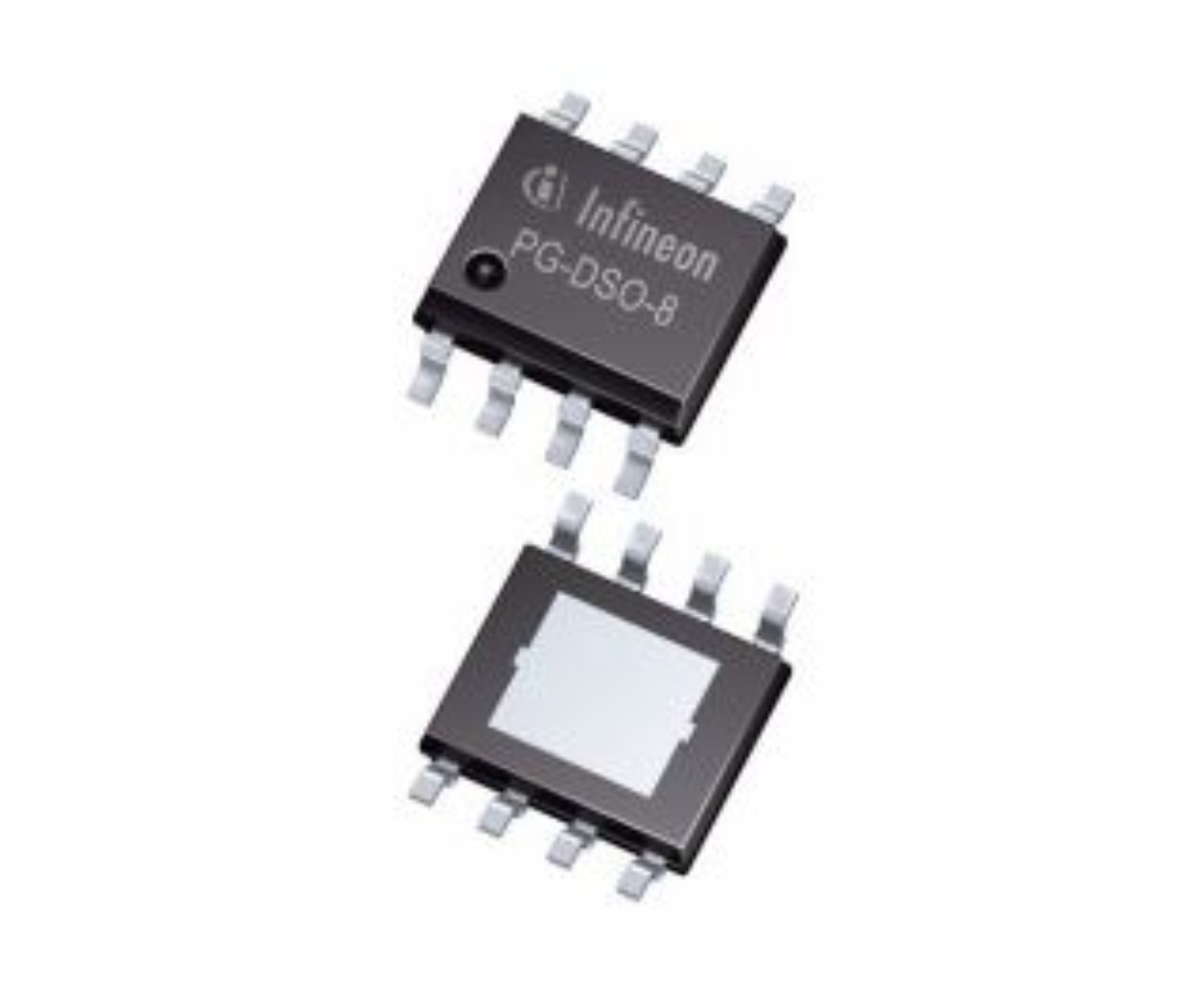

PG-DSO-8
Description

Conv DC-DC 4.75V to 45V Synchronous Step Down Single-Out 0.6V to 16V 1.8A Automotive 8Pin DSO
Documentation

Datasheet

TLE8366EVXUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE8366EVXUMA1 Specifications

Attribute	Attribute Value

Part Number	TLE8366EVXUMA1
Manufacturer	Infineon
ChipWorker Part#	CW48409184
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Number of Outputs	1 Output
Output Voltage	0.6V ~ 16V
Output Current	1.8 A
Number of Positions	8 Position
Switching Frequency	370 kHz
Input Voltage (Max)	45 V
Input Voltage (Min)	4.75 V
Output Voltage (Max)	16 V
Output Voltage (Min)	0.6 V
Output Current (Max)	1.8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	45 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

* 1.8A step down voltage regulator * Output voltage: 3.3 V * ± 2% output voltage tolerance (+-4% for full load current range) * Integrated power transistor * PWM regulation with feedforward * Input voltage range from 4.75V to 45V * 370 kHz switching frequency * Synchronization input * Very low shutdown current consumption ( * Soft-start function * Input undervoltage lockout * Suited for automotive applications: Tj = -40 °C to +150 °C * Green Product (RoHS compliant) * AEC Qualified
