TPA6203A1ZQVR - TI

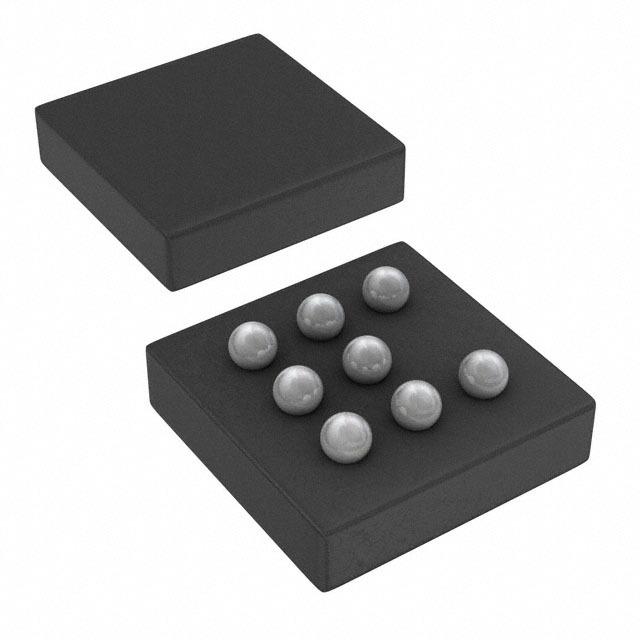

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPA6203A1ZQVR
Manufacturer

TI
ChipWorker Part#

CW51428535
Category

Audio Amplifier IC
Package

BGA-8
Description

Audio Amp Speaker 1CH Mono 1.25W Class-AB 8Pin BGA MICROSTAR JUNIOR T/R
Documentation

Datasheet

TPA6203A1ZQVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPA6203A1ZQVR Specifications

Attribute	Attribute Value

Part Number	TPA6203A1ZQVR
Manufacturer	TI
ChipWorker Part#	CW51428535
Category	Audio Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	BGA-8
Supply Voltage (DC)	5.50 V
Supply Current	2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	885 mW
Common Mode Rejection Ratio	70 dB
Quiescent Current	1.70 mA
Output Power	1.25 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	885 mW
Minimum CMRR Range	65 dB
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	expand all
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.79 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

DESCRIPTION
The TPA6203A1 is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm 2 (ZQV package option) total printed-circuit board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6203A1 is available in the space-saving 2 mm x 2 mm MicroStar Junior™ BGA package, and the space saving 3 mm x 3 mm QFN (DRB) package.
FEATURES
• 1.25 W Into 8 Ω From a 5-V Supply at THD = 1% (Typical)
• Low Supply Current: 1.7 mA Typical
• Shutdown Control < 10 µA
• Only Five External Components
– Improved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.5 V) for Direct Battery Operation
– Fully Differential Design Reduces RF Rectification
– Improved CMRR Eliminates Two Input Coupling Capacitors
– C(BYPASS) Is Optional Due to Fully Differential Design and High PSRR
• Avaliable in a 2 mm x 2 mm MicroStar Junior ™ BGA Package (GQV, ZQV)
• Available in 3 mm x 3 mm QFN Package (DRB)
• Available in an 8-Pin PowerPAD™ MSOP (DGN)
