TPS78218DRVR - TI

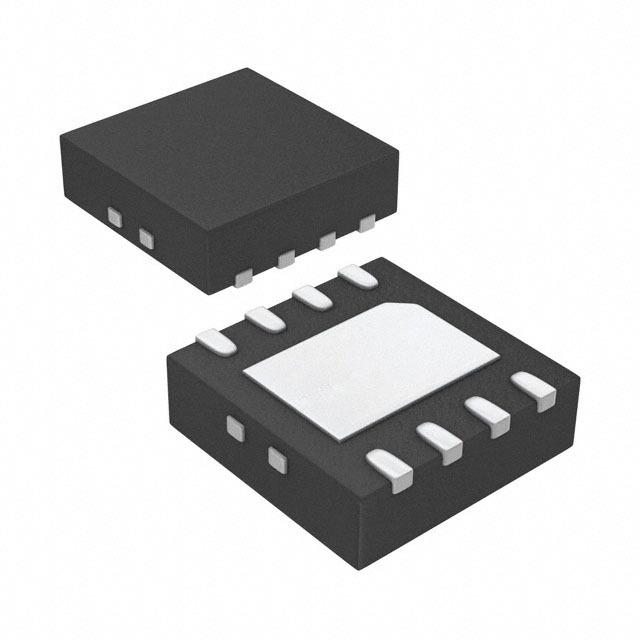

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS78218DRVR
Manufacturer

TI
ChipWorker Part#

CW41835446
Category

Voltage Regulator
Package

WSON-6
Description

500nA, IQ 150mA, Ultra-Low Quiescent Current Low-Dropout Linear Regulator 6-WSON -40℃ to 125℃
Documentation

Datasheet

TPS78218DRVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS78218DRVR Specifications

Attribute	Attribute Value

Part Number	TPS78218DRVR
Manufacturer	TI
ChipWorker Part#	CW41835446
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WSON-6
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	150 mA
Power Dissipation	1.54 W
Quiescent Current	500 nA
Output Capacitor Type	Ceramic
voltage rating	130 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1540 mW
Accuracy	±1 %
Input Voltage	5.5 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Maintain a steady voltage level with this LDO TPS78218DRVR linear regulator from Texas Instruments. It has an overall accuracy of ±1 %. This device has a maximum power dissipation of 1540 mW. This voltage regulation device"s single output can produce a current up to 0.15 A. By only needing an input voltage of 2.2 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 2%(Typ) and line regulation of 1%(Typ). Its maximum power dissipation is 1540 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
