TS12A44514PWR - TI

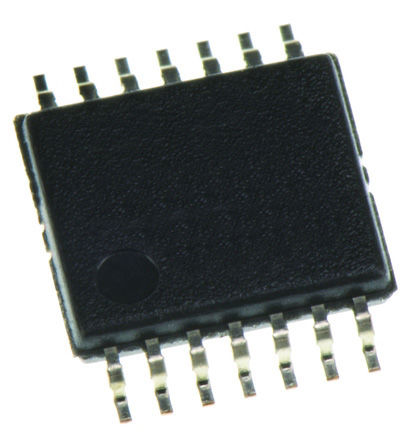

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TS12A44514PWR
Manufacturer

TI
ChipWorker Part#

CW22761379
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

TSSOP-14
Description

TEXAS INSTRUMENTS TS12A44514PWR Analog Switch, Quad Channel, SPST, 4Channels, 10Ω, 2V to 12V, TSSOP, 14Pins
Documentation

Datasheet

TS12A44514PWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TS12A44514PWR Specifications

Attribute	Attribute Value

Part Number	TS12A44514PWR
Manufacturer	TI
ChipWorker Part#	CW22761379
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Number of Outputs	4 Output
Supply Current	50 nA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	880 mW
Bandwidth	530 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	530 MHz
Power Dissipation (Max)	880 mW
Supply Voltage	2V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TS12A44514PWR is a single-pole single-throw (SPST) bidirectional single-supply CMOS Analog Switch has four NO switches. This CMOS switch may operate continuously with a single supply from 2 to 12V and can handle rail-to-rail analog signals. The OFF-leakage current maximum is only 1nA at 25°C or 10nA at 85°C. When using a 5V supply, all digital inputs have 0.8 to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility.
Low off-leakage current
Low on-leakage current
Low charge injection
Fast switching speed
Break-before-make operation
TTL/CMOS Compatible with 5V supply
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
