UT 10 - Phoenix

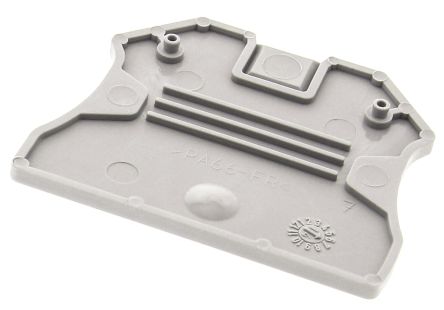

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

UT 10
Manufacturer

Phoenix
ChipWorker Part#

CW71402867
Category

Terminal Block, Connector Terminal
Description

PHOENIX CONTACT UT 10 DIN Rail Mount Terminal Block, 2Positions, 20AWG, 6AWG, 16mm², Screw, 76A
Documentation

Datasheet

UT 10 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

UT 10 Specifications

Attribute	Attribute Value

Part Number	UT 10
Manufacturer	Phoenix
ChipWorker Part#	CW71402867
Category	Terminal Block, Connector Terminal
Documentation	Datasheet
Mounting Style	DIN Rail
Number of Contacts	2 Contact
Gender	Female
Current Rating	76 A
Number of Circuits	1 Circuit
Number of Positions	2 Position
Current Rating (Max)	76 A
Voltage Rating (Max)	1000 V
Voltage Rating	1 kV
	expand all
Size-Length	46.9 mm
Size-Width	10.2 mm
Size-Height	55 mm
Color	Gray
Housing Material	Nylon
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536904000
ECCN Code	EAR99

Product Description

The UT 10 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044160 terminal lock has the compact design enables user-friendly wiring in a small amount of space. The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section. The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section. It accepts 20 to 6AWG wire range.
Half-sine shock form
Optimum screwdriver guidance through closed screw shafts
Multi-conductor connection offers maximum flexibility and wiring density
10mm Stripping length
UL94V-0 Flammability rating
