XCF01SVOG20C ,EEPROM IC Chip - Xilinx

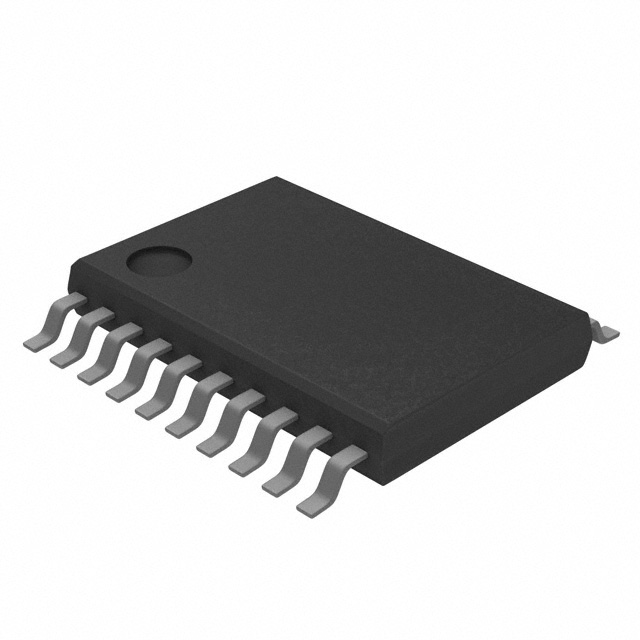

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

188 points

Part No

XCF01SVOG20C
Manufacturer

Xilinx
ChipWorker Part#

CW5907408
Category

EEPROM IC Chip
Package

TSSOP-20
Description

IC: memory; 1Mbit; Serial Flash; SMD; TSSOP20
Documentation

Datasheet
Ships from

Moscow
Наличие

34 pcs In Stock
Estimated Price

$ 33.16

Buy XCF01SVOG20C

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

XCF01SVOG20C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

XCF01SVOG20C Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	XCF01SVOG20C
Manufacturer	Xilinx
ChipWorker Part#	CW5907408
Category	EEPROM IC Chip
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Number of Positions	20 Position
Clock Speed	50 MHz
Memory Size	125000 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	6.5 mm
Size-Width	4.39 mm
Size-Height	1.04 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The XCF01SVOG20C is a platform flash in-system programmable Configuration PROM with JTAG, parallel and serial IC interface. This PROM is suitable for configuration of Xilinx® FPGAs. It provides an easy-to-use and reprogrammable method for storing large Xilinx FPGA configuration-bit-streams.
Low-power advanced CMOS NOR flash process
Endurance of 20000 program/erase cycles
Cascadable for storing longer or multiple -bit-streams
Dedicated boundary-scan (JTAG) I/O power supply (VCCJ)
Serial FPGA configuration interface
ESD sensitive device, take proper precaution while handling the device.
