ZTX694B - Diodes

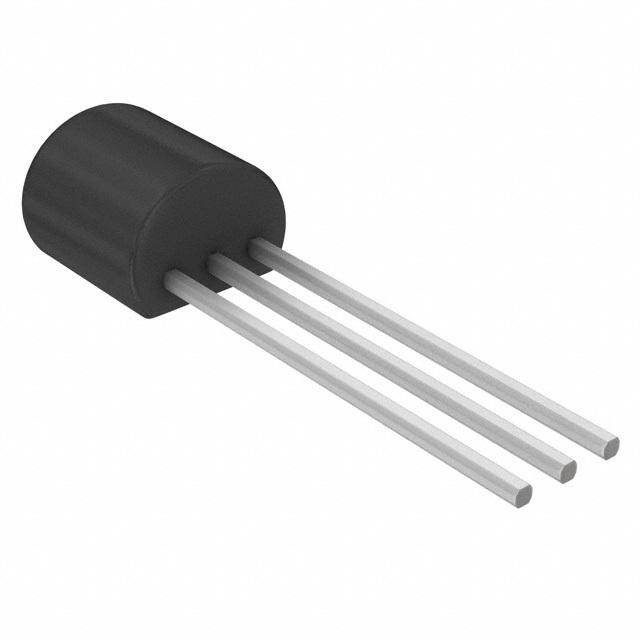

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ZTX694B
Manufacturer

Diodes
ChipWorker Part#

CW33785437
Category

BJT Transistor, BJT
RoHS

Lead free / RoHS Compliant
Description

Trans GP BJT NPN 120V 0.5A 3Pin ELine
Documentation

Datasheet

ZTX694B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ZTX694B Specifications

Attribute	Attribute Value

Part Number	ZTX694B
Manufacturer	Diodes
ChipWorker Part#	CW33785437
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	E-Line-3
Voltage Rating (DC)	120 V
Current Rating	500 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	120 V
Continuous Collector Current	0.5A
hFE Min	400 @200mA, 2V
Input Power (Max)	1 W
DC Current Gain (hFE)	500
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	expand all
Material	Silicon
Operating Temperature	-55℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The ZTX694B is a NPN silicon planar medium power high gain Bipolar Transistor offers 0.5A continuous collector current and 120V collector-base voltage. It is suitable for Darlington replacement, relay/solenoid driver, battery powered circuits and motor drivers applications.
Gain of 400 @ IC = 200mA
Very low saturation voltage
-55 to 200°C Operating temperature range
