2SA1295 ,BJT Transistor, BJT - Sanken Electric

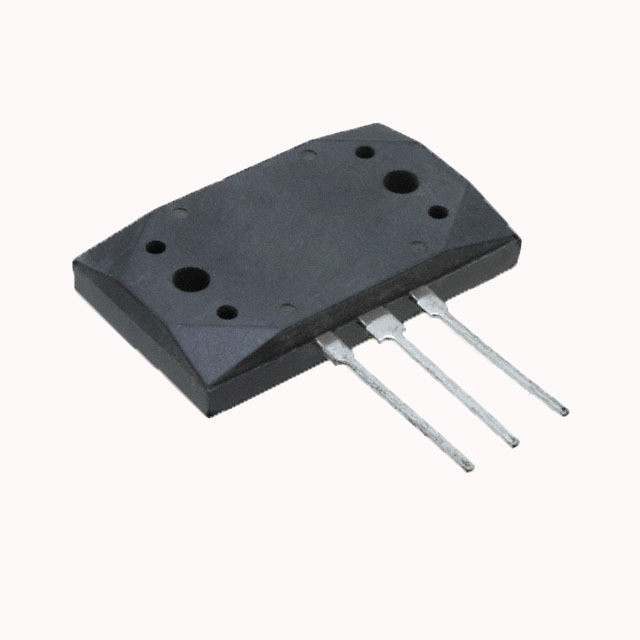

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

88 points

Part No

2SA1295
Manufacturer

Sanken Electric
ChipWorker Part#

CW64399278
Category

BJT Transistor, BJT
Package

MT-200
Description

Power Bipolar Transistor, 17A I(C), 230V V(BR)CEO, 1Element, PNP, Silicon, Plastic/Epoxy, 3Pin, MT-200, 3Pin
Documentation

Datasheet
Ships from

Moscow
Наличие

29391 pcs In Stock
Estimated Price

$ 1.18

Buy 2SA1295

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

2SA1295 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

2SA1295 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	2SA1295
Manufacturer	Sanken Electric
ChipWorker Part#	CW64399278
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	MT-200
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	200 W
Breakdown Voltage (Collector to Emitter)	230 V
hFE Min	50 @5A, 4V
Input Power (Max)	200 W
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Junction Temperature (Max)	150 ℃
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The 2SA1295 is a silicon PNP Epitaxial Planar Transistor for audio and general purpose applications. LAPT (Large Area Parallel Transistor) line which use multiple thermally-coupled transistors in parallel. The result is composite transistors that maintain their excellent linear gain characteristics even at full output current and provide extended frequency response, typically to 40MHz. Best of all, however, is their extraordinary resistance to secondary breakdown. No other audio transistor can match Sanken for power handling at over 100V.
Complement to 2SC3264
2-Screw Mount Package
