AD1674BR ,Analog to Digital, ADC IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

127 points

Part No

AD1674BR
Manufacturer

ADI
ChipWorker Part#

CW37019593
Category

Analog to Digital, ADC IC
Package

SOIC-28
Description

ANALOG DEVICES AD1674BR Analog to Digital Converter, 12Bit, 100KSPS, Single, 11.4V, 16.5V, SOIC
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1

Buy AD1674BR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD1674BR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD1674BR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD1674BR
Manufacturer	ADI
ChipWorker Part#	CW37019593
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Digital Logic Level	SAR
Supply Voltage (DC)	11.4V (min)
Supply Current	10.0 mA
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	575 mW
Sample Rate	100 ksps
Power Consumption	385 mW
Resolution (Bits)	12.0 Bit
Input Impedance	10.0 kΩ
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	575 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.4 V
	expand all
Size-Length	18.1 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Product Details

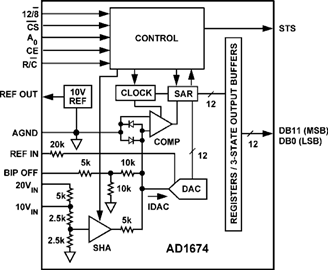

The AD1674 is a complete, multipurpose, 12-bit analog-to-digital converter, consisting of a user-transparent on-board sample-and-hold amplifier (SHA), 10 volt reference, clock and three-state output buffers for microprocessor interface.
The AD1674 is pin compatible with the industry standard AD574A and AD674A, but includes a sampling fuction while delivering a faster conversion rate. The on-chip SHA has a wide input bandwidth supporting 12-bit accuracy over the full Nyquist bandwidth of the converter.
The AD1674 is fully specified for ac parameters (such as S/(N+D) ratio, THD, and IMD) and dc parameters (offset, full-scale error, etc.). With both ac and dc specifications, the AD1674 is ideal for use in signal processing and traditional dc measurement applications.
The AD1674 design is implemented using Analog Devices" BiMOS II process allowing high performance bipolar analog circuitry to be combined on the same die with digital CMOS logic.
Five different temperature grades are available. The AD1674J and K grades are specified for operation over the 0°C to +70°C temperature range. The A and B grades are specified from -40°C to +85°C; the AD1674T grade is specified from -55°C to +125°C. The J and K grades are available in both 28-lead plastic DIP and SOIC. The A and B grade devices are available in 28-lead hermetically sealed ceramic DIP and 28-lead SOIC. The T grade is available in 28-lead hermetically sealed ceramic DIP.
### Features and Benefits
Complete Monolithic 12-Bit 10 µs Sampling ADC
On-Board Sample-and-Hold Amplifier
Industry Standard Pinout
8- and 16-Bit Microprocessor Interface
AC and DC Specified and Tested
Unipolar and Bipolar Inputs
±5 V, ±10 V, 0 V–10 V, 0 V–20 V Input Ranges
Commercial, Industrial and Military Temperature Range Grades
MIL-STD-883 and SMD Compliant Versions Available
