AD5252BRUZ100 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5252BRUZ100
Manufacturer

ADI
ChipWorker Part#

CW1863744
Category

Digital Potentiometer IC
Package

TSSOP-14
Description

Digital Potentiometer 100KΩ 256POS Non-Volatile Linear 14Pin TSSOP Tube
Documentation

Datasheet

AD5252BRUZ100 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5252BRUZ100 Specifications

Attribute	Attribute Value

Part Number	AD5252BRUZ100
Manufacturer	ADI
ChipWorker Part#	CW1863744
Category	Digital Potentiometer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	2.70V (min)
Capacitance Tolerance	±20 %
Supply Current	0.005 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	14 Position
Clock Speed	400kHz (max)
Resistance	100 kΩ
Resistance Tolerance	±20 %
Quiescent Current	5.00 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Temperature Coefficient	±300 ppm/℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Product Details

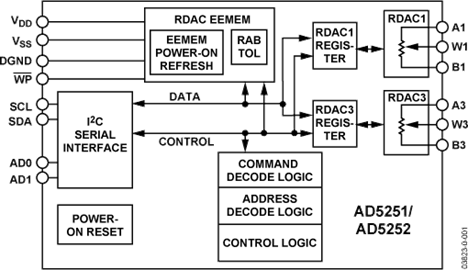

The AD5252 is a dual channel, digitally controlled variable resistor (VR) with resolutions of 256 positions. This device performs the same electronic adjustment function as a potentiometer or variable resistor. The AD5252’s versatile programming via a Micro Controller allows multiple modes of operation and adjustment.
In the direct program mode a predetermined setting of the RDAC register can be loaded directly from the micro controller. Another key mode of operation allows the RDAC register to be refreshed with the setting previously stored in the EEMEM register. When changes are made to the RDAC register to establish a new wiper position, the value of the setting can be saved into the EEMEM by executing an EEMEM save operation. Once the settings are saved in the EEMEM register, these values will be transferred automatically to the RDAC register to set the wiper position at system power ON. Such operation is enabled by the internal preset strobe and the preset can also be accessed externally.
The basic mode of adjustment is the increment and decrement from the present setting of the Wiper position setting (RDAC) register. An internal scratch pad RDAC register can be moved UP or DOWN, one step of the nominal resistance between terminals A-and-B. This linearly changes the wiper-to-B terminal resistance (RWB) by one out of 64/256 positions of the AD5251/AD5252 end- to-end resistance (RAB). For non-linear changes in wiper setting, a left/right shift command adjusts levels in 6dB steps, which can be useful for sound and light alarm applications.
The AD5251/AD5252 is available in the thin TSSOP-14 package. All parts are guaranteed to operate over the extended industrial temperature range of -40°C to +125°C.
