AD5535 Specifications
Consulting Engineer >>| Attribute | Attribute Value |
|---|---|
| Part Number | AD5535 |
| Manufacturer | ADI |
| ChipWorker Part# | CW389440637 |
| Documentation | Datasheet |
| expand all | |
| Product Lifecycle Status | Last Time Buy |
Similar & Replacement Parts
Similar products
Product Description
- Product Details

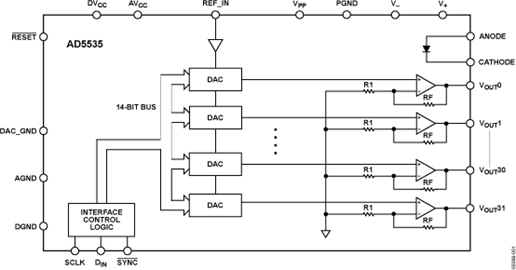

- The AD5535 is a 32-channel 14-bit DAC with an on-chip high voltage output amplifier. This device is targeted for optical microelectromechanical systems. The output voltage range is programmable via the REFIN pin. Output range is 0 to 50 V with REFIN=1 V and is 0 V to +200 V with REFIN=4 V. Each amplifier can source 700 µA, ideal for the deflection and control of optical MEMS mirrors. The output amplifier with a gain of 50 is driven from a 14-bit DAC whose output range varies from 0 to VREF depending on the code loaded the the relevant DAC register. The selected DAC register is written to via the 3-wire interface. The serial interface operates at clock rates up to 30 MHz and is compatible with DSP and microcontroller interface standards.
- The device is operated with AVCC = 4.75 to 5.25V, DVCC = 2.7 V to 5.25 V, V- = -4.75 to -5.25 V, V+ = +4.75V to +5.25 V, VPP = 210 V. A stable reference is required on REF_IN. REF_IN is buffered internally on the AD5535.
- **Product Highlights**
- 1\. 32, 14-bit DACs in one package, guaranteed monotonic with integrated high voltage amplifier.
- 2\. Available in a CSPBGA package with a body size of 15mm by 15mm.
- **Applications**
- Optical Microelectromechanical Systems (MEMS)
- Optical Crosspoint Switches
- Micro-Positioning Applications Using Piezo-Flextures
- Level Setting in Automotive Test and Measurement
- ### Features and Benefits
- High Integration: 32-Channel, 14-Bit DAC with Integrated
- High Voltage Output Amplifier
- Guaranteed Monotonic
- Housed in 15 x 15 mm CSPBGA Package Output
- Fullscale Output Voltage Programmable from 50V to 200V via Reference Input
- 700uA Drive Capability
- Integrated Silicon Diode for Temperature Monitoring
- DSP-/Microcontroller-Compatible Serial Interface
- Channel Update Rate 1.2 MHz
- Asynchronous RESET facility
- Temperature Range -10ºC to +85ºC
