AD574AJN - ADI
The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoAD574AJN
-
ManufacturerADI
-
ChipWorker Part#CW33517159
-
CategoryAnalog to Digital, ADC IC
-
PackageDIP-28
-
DescriptionADC Single SAR 12Bit Parallel 28Pin PDIP W
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
AD574AJN Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
AD574AJN Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | AD574AJN |
| Manufacturer | ADI |
| ChipWorker Part# | CW33517159 |
| Category | Analog to Digital, ADC IC |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | DIP-28 |
| Digital Logic Level | SAR |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 390 mW |
| Power Consumption | 390 mW |
| Resolution (Bits) | 12.0 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 725 mW |
| Number of Input Channels | 1 Channel |
| expand all | |
| Size-Width | 14.73 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
Product Description
- PRODUCT DESCRIPTION

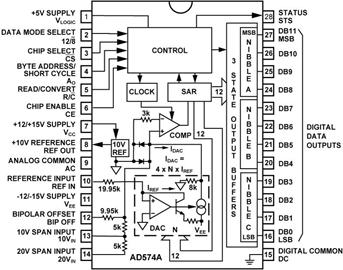

- The AD574A is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals.
- FEATURES
- Complete 12-Bit A/D Converter with Reference and Clock
- 8- and 16-Bit Microprocessor Bus Interface
- Guaranteed Linearity Over Temperature
- 0o8C to +70oC – AD574AJ, K, L
- –55oC to +125oC – AD574AS, T, U
- No Missing Codes Over Temperature
- 35 ms Maximum Conversion Time
- Buried Zener Reference for Long-Term Stability and Low Gain T.C. 10 ppm/8C max AD574AL 12.5 ppm/8C max AD574AU
- Ceramic DIP, Plastic DIP or PLCC Package
- Available in Higher Speed, Pinout-Compatible Versions(15 ms AD674B, 80 ms AD774B; 10 ms (with SHA) AD1674)
- Available in Versions Compliant with MIL-STD-883 and JAN QPL
