AD7228KN ,Digital to Analog, DAC IC - ADI

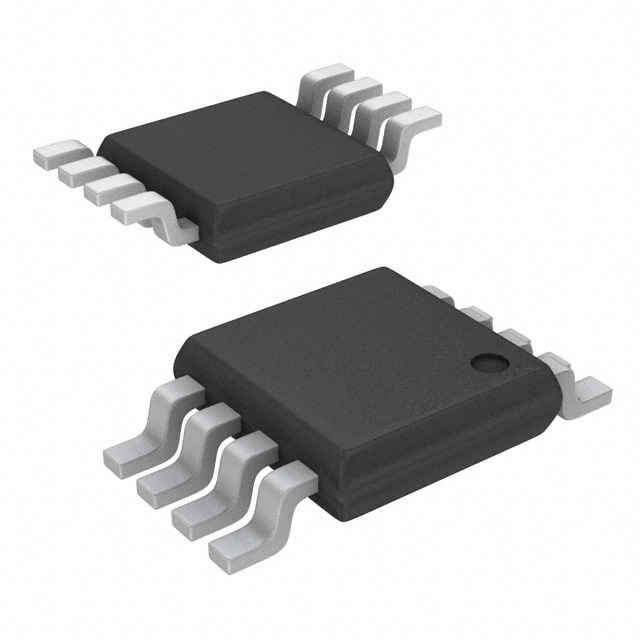

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

113 points

Part No

AD7228KN
Manufacturer

ADI
ChipWorker Part#

CW39742804
Category

Digital to Analog, DAC IC
Package

PDIP-24
Description

DAC 8CH R-2R 8Bit 24Pin PDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

1643 pcs In Stock
Estimated Price

$ 60.27

Buy AD7228KN

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD7228KN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD7228KN Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD7228KN
Manufacturer	ADI
ChipWorker Part#	CW39742804
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	PDIP-24
Number of Outputs	8 Output
Number of Channels	8 Channel
Number of Bits	8 Bit
Power Dissipation	1 W
Sample Rate	200 ksps
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Number of DACs	8 DAC
Supply Voltage (Max)	5.25V, 16.5V
Supply Voltage (Min)	4.75V, 13.5V
	expand all
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD7228 contains eight 8-bit voltage mode digital-to-analog converters (DACs), with output buffer amplifiers and interface logic on a single monolithic chip. No external trims are required to achieve the full specified performance for the device.
Separate on-chip latches are provided for each of the eight DACs. Data is transferred into the data latches through a common 8-bit, TTL/CMOS-compatible input port (5 V). The A0, A1, and A2 address inputs determine which latch is loaded when WR goes low. The control logic is speed compatible with most 8-bit microprocessors.
Specified performance is guaranteed for input reference voltages from 2 V to 10 V when using dual supplies. The device is also specified for single-supply operation using a reference of 10 V. Each output buffer amplifier is capable of developing 10 V across a 2 kΩ load.
The AD7228 is fabricated on an all ion implanted, high speed, linear-compatible CMOS (LC2MOS) process, specifically developed to integrate high speed digital logic circuits and precision analog circuits on the same chip.
**Product Highlights**
1. The single chip design of eight 8-bit DACs and amplifiers allows a dramatic reduction in board space requirements and offers increased reliability in systems using multiple converters. The PDIP, CERDIP, and SOIC pinout is aimed at optimizing board layout with all analog inputs and outputs at one side of the package and all digital inputs at the other.
2. The voltage mode configuration of the DACs allows single supply operation of the AD7228. The device can also be operated with dual supplies giving enhanced performance for some parameters.
3. The AD7228 has a common 8-bit data bus with individual DAC latches, providing a versatile control architecture for simple interface to microprocessors. All latch enable signals are level triggered and speed compatible with most high performance 8-bit microprocessors.
### Features and Benefits
Eight 8-bit DACs with output amplifiers
Operates with single or dual supplies
Microprocessor-compatible (95 ns WR pulse)
No user trims required
Skinny 24-lead PDIP, CERDIP, and SOIC packages, and a 28-lead PLCC surface-mount package

expand all
