AD73322L - ADI

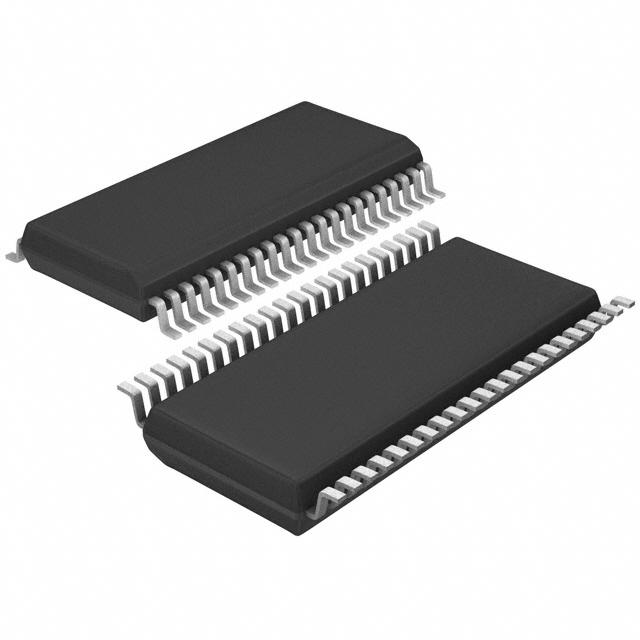

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

28 points

Part No

AD73322L
Manufacturer

ADI
ChipWorker Part#

CW353123783
Description

Dual-Channel, 3V Front-End Processor for General Purpose Applications Including Speech and Telephony
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy AD73322L

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD73322L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD73322L Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD73322L
Manufacturer	ADI
ChipWorker Part#	CW353123783
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

GENERAL DESCRIPTION
The AD73322L is a dual front-end processor for general purpose applications including speech and telephony. It features two 16-bit A/D conversion channels and two 16-bit D/A conversion channels. Each channel provides 78 dB signal-to-noise ratio over a voiceband signal bandwidth. It also features an input-to-output gain network in both the analog and digital domains. This is featured on both codecs and can be used for impedance matching or scaling when interfacing to Subscriber Line Interface Circuits (SLICs).
FEATURES
Two 16-Bit A/D Converters
Two 16-Bit D/A Converters
Programmable Input/Output Sample Rates
78 dB ADC SNR
78 dB DAC SNR
64 kS/s Maximum Sample Rate
–90 dB Crosstalk
Low Group Delay (25 μs Typ per ADC Channel, 50 μs Typ per DAC Channel)
Programmable Input/Output Gain
Flexible Serial Port which Allows Up to Four Dual
Codecs to be Connected in Cascade Giving Eight
I/O Channels
Single (2.7 V to 3.3 V) Supply Operation
50 mW Typ Power Consumption at 3.0 V
Temperature Range: –40°C to +105°C
On-Chip Reference
28-Lead SOIC, TSSOP, and 44-Lead LQFP Packages
APPLICATIONS
General-Purpose Analog I/O
Speech Processing
Cordless and Personal Communications
Telephony
Active Control of Sound and Vibration
Data Communications
Wireless Local Loop
