AD8375 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8375
Manufacturer

ADI
ChipWorker Part#

CW760517620
Description

Ultralow Distortion IF VGA
Documentation

Datasheet

AD8375 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8375 Specifications

Attribute	Attribute Value

Part Number	AD8375
Manufacturer	ADI
ChipWorker Part#	CW760517620
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details
The AD8375 is a digitally controlled, variable gain, wide bandwidth amplifier that provides precise gain control, high IP3, and low noise figure. The excellent distortion performance and high signal bandwidth make the AD8375 an excellent gain control device for a variety of receiver applications.
Using an advanced high speed SiGe process and incorporating proprietary distortion cancellation techniques, the AD8375 achieves 50 dBm output IP3 at 200 MHz.
The AD8375 provides a broad 24 dB gain range with 1 dB resolution. The gain is adjusted through a 5-pin control interface and can be driven using standard TTL levels. The open-collector outputs provide a flexible interface, allowing the overall signal gain to be set by the loading impedance. Thus, the signal voltage gain is directly proportional to the load.
The AD8375 is powered on by applying the appropriate logic level to the PWUP pin. The quiescent current of the AD8375 is typically 130 mA. When powered down, the AD8375 consumes less than 5 mA and offers excellent input-to-output isolation.

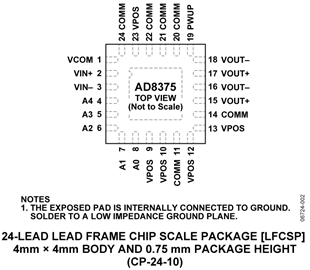

Fabricated on an Analog Devices, Inc., high speed SiGe process, the AD8375 is supplied in a compact, thermally enhanced, 4 mm × 4 mm, 24-lead LFCSP package and operates over the temperature range of −40°C to +85°C.
**Applications**
Differential ADC drivers
High IF sampling receivers
Wideband multichannel receivers
Instrumentation
### Features and Benefits
Bandwidth of 630 MHz (−3 dB)
Gain range: −4 dB to +20 dB
Step size: 1 dB ± 0.2 dB
Differential input and output
Noise figure: 8 dB @ maximum gain
Output IP3 of ~50 dBm at 200 MHz
Output P1dB of 19 dBm at 200 MHz
Provides constant SFDR vs. gain
Parallel 5-bit control interface
Power-down feature
Single 5 V supply operation
24-lead, 4 mm × 4 mm LFCSP
