AD8628ARTZ - ADI
The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoAD8628ARTZ
-
ManufacturerADI
-
ChipWorker Part#CW17448403
-
CategoryOperational Amplifier, OP Amp IC
-
PackageSOT-23
-
DescriptionANALOG DEVICES AD8628ARTZ Operational Amplifier, Single, 1 Amplifier, 2.5MHz, 1V/µs, 2.7V to 5V, SOT-23, 5Pins
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
AD8628ARTZ Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
AD8628ARTZ Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | AD8628ARTZ |
| Manufacturer | ADI |
| ChipWorker Part# | CW17448403 |
| Category | Operational Amplifier, OP Amp IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |

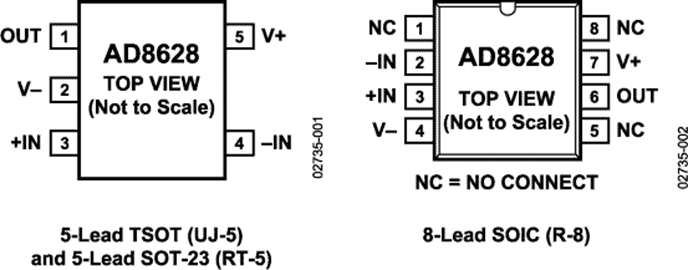

| Number of Pins | 5 Pin |
| Case/Package | SOT-23 |
| Number of Positions | 5 Position |
| Bandwidth | 2.5 MHz |
| Slew Rate | 1.00 V/μs |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 5V |
| expand all | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
Product Description
- The AD8628ARTZ is a zero-drift, single-supply, rail-to-rail input/output Operational Amplifier. It provides benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analogue Devices, Inc., topology, these zero-drift amplifier combine low cost with high accuracy and low noise. No external capacitor is required. In addition, this is greatly reduces the digital switching noise found in most chopper-stabilized amplifier. Position and pressure sensors, medical equipment and strain gage amplifiers benefit greatly from nearly zero-drift over their operating temperature range. Many systems can take advantage of the rail-to-rail input and output swings provided by this to reduce input biasing complexity and maximize SNR.
- 1µV Low offset voltage
- 0.002µV/°C Input offset drift
- Rail-to-rail input and output swing
- 130dB High gain, CMRR and PSRR
- 100pA Maximum very low input bias current
- 1mA Low supply current
- 50µs Overload recovery time
- Product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD.
