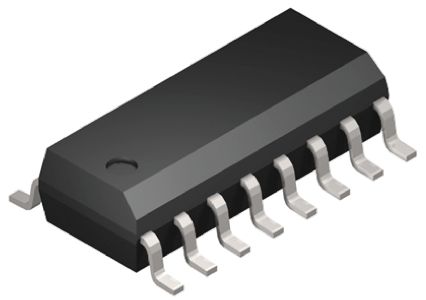

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADG604
Manufacturer

ADI
ChipWorker Part#

CW430793503
Description

1 pC Charge Injection, 100pA Leakage CMOS 5V/5V/3V 4Channel Multiplexer
Documentation

Datasheet

ADG604 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADG604 Specifications

Attribute	Attribute Value

Part Number	ADG604
Manufacturer	ADI
ChipWorker Part#	CW430793503
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details
The ADG604 is a CMOS analog multiplexer, comprising of four single channels. It operates from a dual supply of ±2.7 V to ±5.5 V, or from a single supply of +2.7 V to +5.5 V. The ADG604 switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1 and EN. A Logic "0" on the EN pin disables the device.
The ADG604 offers ultra-low charge injection of 1pC and leakage currents of less than 250pA at 85ºC. It offers on-resistance of 85 Ω typ, which is matched to within 8 Ω between channels. The ADG604 also has low power dissipation yet gives high switching speeds. The ADG604 is available in a 14-lead TSSOP package.
### Features and Benefits
1 pC Charge Injection
(Over the Full Signal Range)
±2.7 V to ±5.5 V Dual Supply
2.7 V to 5.5 V Single Supply
Automotive Temperature Range:
–40°C to +125°C
100 pA Max @ 25°C Leakage Currents
85 O Typ On Resistance
Rail-to-Rail Operation
Fast Switching Times
Typical Power Consumption
(<0.1 vW)
TTL/CMOS Compatible Inputs
14-Lead TSSOP Package
